Dettagli del prodotto
Marca: CDI
Certificazione: UL，CMC，ETL，RoHS，GS，CE，3C
Numero di modello: CDI-160S
Termini di pagamento e di spedizione
Quantità di ordine minimo: 1
Prezzo: Negoziabile
Tempi di consegna: 15-20 giorni
Termini di pagamento: L/C,T/T,Western Union
Risoluzione infrarossa: |
160×120 |
Frame rate: |
25Hz |
Risoluzione eccellente: |
320×240 |
Intervallo di misurazione della temperatura: |
-20℃~550℃ |
Modi di immagine: |
Imaging termico, T-Mix Fusion, Picture-in-Picture, Luce visibile (quattro tipi) |
Magazzinaggio: |
32GB integrato |
Progettazione della protezione: |
Protezione IP54, resistenza alla caduta da 2 metri |
Espansibilità: |
Foro per vite da 1/4 nella parte inferiore per l'uso del treppiede |
Risoluzione infrarossa: |
160×120 |
Frame rate: |
25Hz |
Risoluzione eccellente: |
320×240 |
Intervallo di misurazione della temperatura: |
-20℃~550℃ |
Modi di immagine: |
Imaging termico, T-Mix Fusion, Picture-in-Picture, Luce visibile (quattro tipi) |
Magazzinaggio: |
32GB integrato |
Progettazione della protezione: |
Protezione IP54, resistenza alla caduta da 2 metri |
Espansibilità: |
Foro per vite da 1/4 nella parte inferiore per l'uso del treppiede |

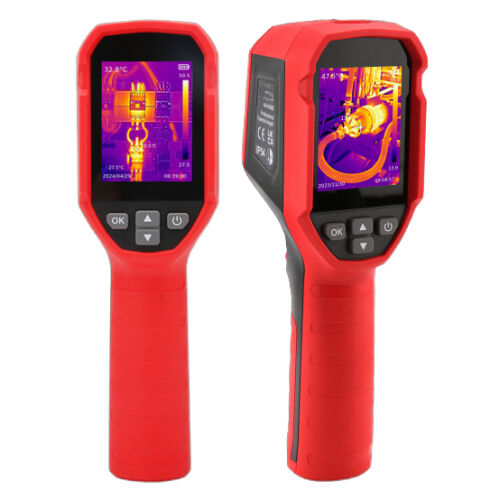

CDI-160S Infrared Thermal Imager
1. Product Overview
The CDI-160S is an economical handheld infrared thermal imager that integrates imaging and temperature measurement. It is lightweight, portable, and fully functional. The temperature measurement range is -20°C to 550°C. The infrared resolution is 160×120. It features center-point temperature measurement and automatic tracking of high and low temperatures. It is also equipped with an LED lighting lamp, laser indication, high and low temperature alarms, IP54/ two-meter anti-drop and three-proof design, making it easier for you to handle different working environments. In addition, it can read the temperature by reading the device's own temperature measurement method and can also take photos and store them. Through the equipped infrared image analysis software, it can be analyzed later to help you understand every detail.
2. Product Features
(1) Infrared Resolution: 160×120
(2) Frame Rate: 25Hz
(3) Super Resolution: 320×240
(4) Temperature Measurement Range: -20℃~550℃
(5) Full-screen Highest/Lowest Temperature Tracking
(6) High and Low Temperature Alarm: Image, Buzzer, LED Flashing
(7) PC Super Resolution Analysis Software
(8) Four Image Modes: Thermal Imaging, T-Mix Fusion, Picture-in-Picture, Visible Light
(9) Seven Color Palettes Optional
(10) Laser Indication/LED Illuminating Lamp
(11) Built-in 32GB Storage
(12) Adjustable Emissivity
(13) Three-proof Design: IP54/2-meter Drop Resistance
(14) 1/4 Screw Hole at the Bottom for Tripod Use
3. Main Technical Data
| Product Model | CDI-160S |
| Detector Type | Detector Type |
| Infrared Resolution | 160 x 120 |
| Super Resolution | 320 x 240 |
| Infrared Response Band | 8～14μm |
| Pixel Pitch | 12μm |
| Frame Rate | ≤25Hz |
| Thermal Sensitivity/NETD | <50mK @25℃ |
| Temperature Measurement Response Time | ≤500ms |
| Gain Mode | Automatic Gain |
| Focusing Method | Fixed Focus |
| Thermal Imaging Lens Focal Length | 2.6mm |
| Aperture | F1.3 |
| Field of View | 40°H x 30°V |
| Spatial Resolution/IFOV | 4.62mrad |
| Temperature Measurement Range | -20℃～550℃ |
| Temperature Measurement Accuracy | ±2℃/±2% (whichever is larger, normal temperature 25℃) |
| Temperature Measurement Resolution | 0.1℃ |
| Recommended Temperature Measurement Distance | 0.25m |
| Temperature Measurement Unit | ℃/℉ |
| Temperature Measurement Display | Center Point Temperature Measurement, High and Low Temperature Tracking |
| High and Low Temperature Tracking | √ |
| High and Low Temperature Alarm | Alarm threshold can be set manually, screen high and low temperature alarm screen + LED light flashing + buzzer alarm |
| Battery Type | 18650 3.7V 2600mAh 9.62Wh Rechargeable Lithium Battery |
| Battery Working Time | >=6h (at normal temperature 24℃-28℃ under default working state) |
| Charging System | Type-C Direct Charge |
| Temperature Measurement Parameter | Emissivity 0.95 (default) (0.1～0.99) |
| Display Screen | 2.4'' TFT TN Screen |
| Display Resolution | 320 x 240px |
| Color Palette | Iron Red, Rainbow, White Hot, Black Hot, Red Hot, Lava, High Contrast Rainbow |
| Image Mode | Thermal Imaging, T-Mix Fusion, Picture-in-Picture, Visible Light |
| Fusion Ratio | Supported |
| Image Format | JPG |
| Storage | EMMC Built-in Storage (32GB Usable) |
| Data Interface | Type-C USB |
| Photo Taking | √ |
| Illuminating Lamp/Laser Indication | √ |
| Auto Power Off | Off, 5min, 10min, 30min |
| Charging Time | ≤2.5 Hours |
| PC Analysis Software | √ |
| Protection Grade/Drop Protection | IP54/2m |
| Dimensions (Length x Width x Height) | 197 x 72 x 60 mm |
| Weight | 0.33kg |
| Product Packaging | Color Box, Instruction Manual, Warranty Certificate/Qualification Certificate, 1M USB Cable |
