Detalhes do produto
Marca: CDI
Certificação: UL，CMC，ETL，RoHS，GS，CE，3C
Número do modelo: CDI260V+
Termos de pagamento e envio
Quantidade de ordem mínima: 1
Preço: Negociável
Tempo de entrega: 15-20 dias
Termos de pagamento: L/C, T/T, Western Union
Definição infravermelha: |
256×192 |
Faixa de medição de temperatura: |
-20℃~550℃ |
Modos de imagem: |
Imagem térmica, imagem visual, fusão T-Mix, imagem em imagem (PIP) |
Agrupamento do laser: |
0,3~30m (Laser Classe 2, Vermelho) |
Classificação de proteção: |
IP54, resistência à queda de 2m |
Bateria: |
Bateria removível de 3,7 V, 5200mAh |
Resolução da luz visível: |
5mp |
Sistemas apoiados: |
iOS, aplicativo móvel Android, software de análise de PC |
Definição infravermelha: |
256×192 |
Faixa de medição de temperatura: |
-20℃~550℃ |
Modos de imagem: |
Imagem térmica, imagem visual, fusão T-Mix, imagem em imagem (PIP) |
Agrupamento do laser: |
0,3~30m (Laser Classe 2, Vermelho) |
Classificação de proteção: |
IP54, resistência à queda de 2m |
Bateria: |
Bateria removível de 3,7 V, 5200mAh |
Resolução da luz visível: |
5mp |
Sistemas apoiados: |
iOS, aplicativo móvel Android, software de análise de PC |

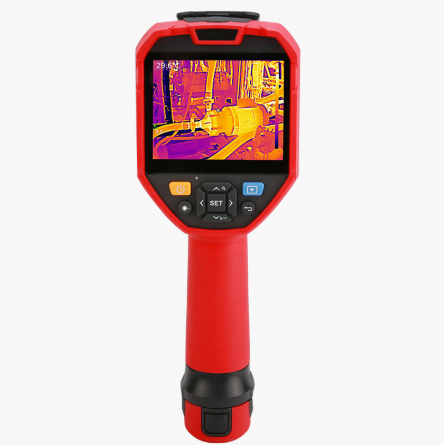

CDI260V+ Touchscreen Laser Distance Measuring Infrared Thermal Imaging Instrument
1. Product Overview
The CDI260V+ handheld infrared thermal imager, infrared resolution: 256×192 and 5 million visible light pixels, allowing you to see more clearly. The wide temperature measurement range - 20~550 ℃ meets the needs of more usage scenarios. 3.5" touch display makes your work easier. The laser ranging function enables you to complete measurement work at a safe distance. Center point temperature measurement / high and low temperature automatic tracking / custom analysis objects / custom limit temperature for isotherms are more conducive to quickly detecting abnormalities or the parts you want to observe. In addition to the powerful functions on the device body, it is also equipped with photo taking, video recording, mobile phone APP, PC software for real-time image transmission and post-image analysis processing and output of analysis reports.
2. Product Features
(1) Infrared Resolution: 256×192
(2) Display Resolution: 640×480, 3.5” IPS Touch Screen
(3) Temperature Measurement Range: -20~550 ℃
(4) Equipped with Self-developed T-MIX Fusion Image Algorithm
(5) 30m Laser Ranging
(6) Support Photo/Video Storage
(7) PC Software/Mobile APP (Android and iOS)
(8) Image Modes: Thermal Imaging, Visible Light, T-Mix/Dual-light Fusion, Picture-in-Picture
(9) 5MP Visible Light Lens
(10) Manual/Auto Isotherm Function
(11) Custom Add Temperature Measurement Analysis Object for Temperature Measurement
(12) LED Illuminator
(13) IP54 Protection Rating/2-meter Drop Resistance
(14) 3.7V, 5200mAh Replaceable Battery
3. Main Technical Data
| Model | UTI260V |
| Infrared Resolution | 256×192 |
| Frame Rate | 25Hz |
| Thermal Sensitivity/NETD | ＜50mk |
| Spatial Resolution/IFOV | 3.8mrad |
| Lens Focal Length | 3.2mm |
| Field of View | 56.0°H×42.0°V |
| Infrared Response Band | 8℃～14um |
| Pixel Size | 12μm |
| Focus Mode | Fixed Focus |
| Temperature Measurement Range | -20℃～550℃ |
| Temperature Measurement Accuracy | 0℃～550℃, Normal Temperature 25℃, ±2℃/±2% (whichever is larger) |
| Temperature Measurement Display | 3 Temperature Measurement Points (Center Point, Highest Temperature, Lowest Temperature) |
| Temperature Analysis | 5 Points, 3 Circles, 3 Rectangles, 1 Line |
| Palette | Iron Red, Rainbow, Black Hot, White Hot, Red Hot, Lava, High Contrast Rainbow |
| Isotherm | Manual/Auto |
| High and Low Temperature Tracking | √ |
| High and Low Temperature Alarm | Screen Icon Alarm, Illuminator Alarm, Sound Alarm |
| Temperature Measurement Parameters | Emissivity, Reflection Temperature, Ambient Temperature, Distance, Relative Humidity |
| Display Screen/Display Resolution | 3.5" LCD Touch Screen/640×480 |
| Visible Light Resolution | 5MP |
| Image Modes | Thermal Imaging, Visible Light, T-Mix/Dual-light Fusion, Picture-in-Picture |
| Digital Zoom | 1X, 2X, 4X |
| Image/Video Format | JPG/MP4 |
| Photo/Video Recording | Supported |
| Illuminator | Supported |
| PC Analysis Software | Available (Real-time Image, Photo Download with Real-time Control and Analysis) |
| Mobile APP | Available (Real-time Image, Photo Download with Real-time Control and Analysis) |
| Laser Ranging | 0.3～30m (Class 2 Laser, Red) |
| Protection Rating/Drop Protection | IP54/2m |
| Battery | 5200mAh (Removable Battery UT-M17) |
| Body Weight | Approximately 0.65kg |
| Body Dimensions | 260×98×96.5mm |
| Certifications | CE, FCC, UKCA, ROHS |
