Detalhes do produto
Marca: CDI
Certificação: UL，CMC，ETL，RoHS，GS，CE，3C
Número do modelo: CDI320E
Termos de pagamento e envio
Quantidade de ordem mínima: 1
Preço: Negociável
Tempo de entrega: 15-20 dias
Termos de pagamento: L/C, T/T, Western Union
Definição infravermelha: |
320×240 |
Faixa de medição de temperatura: |
-20℃~550℃ |
Precisão da temperatura: |
±2℃ ou ±2% (o que for maior) |
Fusão de Luz Visível: |
2mp |
Modos de imagem: |
Imagem térmica, luz visível, imagem em imagem, fusão |
Armazenar: |
Cartão TF de 32GB, formato de imagem JPG |
Bateria: |
Bateria recarregável de 3,7V 5200mAh |
Classificação de proteção: |
IP54, resistência à queda de 2 metros |
Definição infravermelha: |
320×240 |
Faixa de medição de temperatura: |
-20℃~550℃ |
Precisão da temperatura: |
±2℃ ou ±2% (o que for maior) |
Fusão de Luz Visível: |
2mp |
Modos de imagem: |
Imagem térmica, luz visível, imagem em imagem, fusão |
Armazenar: |
Cartão TF de 32GB, formato de imagem JPG |
Bateria: |
Bateria recarregável de 3,7V 5200mAh |
Classificação de proteção: |
IP54, resistência à queda de 2 metros |

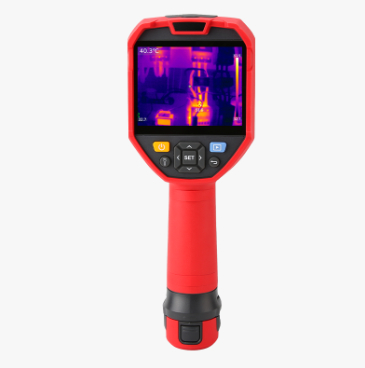

CDI320E Infrared Thermal Imager
1. Product Overview
The CDIThe 320E handheld infrared thermal imager offers a 3.5" display with an infrared resolution of 320×240 and 200w visible light pixels, allowing you to see more clearly during imaging. The wide temperature measurement range of -20 to 550℃ meets the needs of more usage scenarios. The functions of center point temperature measurement, automatic tracking of high and low temperatures, custom analysis objects, and custom limit temperature for isotherms make it easier to quickly detect abnormalities or the areas you want to observe. In addition to the powerful functions on the device itself, it is also equipped with mobile phone and PC software for viewing and analysis.
2. Product Features
(1) 3.5" IPS Screen (640*480)
(2) Infrared Resolution: 320x240
(3) Frame Rate: 25Hz
(4) Temperature Measurement Range: -20℃ to 550℃
(5) Temperature Accuracy: ±2℃ / ±2%
(6) Supports Visible Light Fusion (200W Visible Light Pixels)
(7) Digital Zoom: 2x, 4x
(8) LED Illuminator
(9) Isotherm Function
(10) Customizable Image Storage Library
(11) High and Low Temperature Threshold Alarm
(12) Quick Tracking of Hot and Cold Spots
(13) Customizable Measurement Points (Points, Rectangles, Circles, Lines)
(14) PC Analysis Software + PC Reporting Software
(15) Mobile APP Supports Wi-Fi Photo Download
(16) Type-C Charging / Removable Lithium Battery (Battery Can Also Be Charged Separately)
(17) IP54 Protection Rating, 2-Meter Drop Resistance
3. Main Technical Data
| Model | CDI320E | Model | CDI320E |
| Screen | 3.5" IPS | Emissivity | 0.01~1.00 |
| Infrared Resolution | 320x240 | Pixel Size | 12μm |
| Temperature Measurement Range | -20 ~ 550℃ | Palette | Iron Red, Rainbow, White Hot, Red Hot, Black Hot, Lava, High Contrast Rainbow |
| Temperature Accuracy | ±2℃ or ±2% (whichever is larger) | Temperature Display | Center Point, Automatic Tracking of High and Low Temperatures |
| Frame Rate | 25Hz | Response Waveband | 8~14μm |
| Temperature Unit | Celsius/Fahrenheit | Image Modes | Thermal Imaging/Visible Light/Picture-in-Picture/Fusion |
| Visible Light Fusion | 2MP | Field of View | 56°×42.2° |
| Language | Chinese, English | Lens Focal Length | 3.2mm |
| Digital Zoom | 2x, 4x | Focus Mode | Fixed Focus |
| Memory | 32GB TF Card | Thermal Sensitivity | ＜65mk@25℃ |
| LED Lighting | √ | Battery | 3.7V 5200mAh Rechargeable Battery |
| PC Software | Software Screen Projection/Image Analysis | Isotherm | Manual/Auto |
| Mobile APP | WiFi, Photo Download and Analysis | Operating Temperature | 0~50℃ |
| IFOV | 3mrad | Storage Temperature | -10~60℃ |
| Image Storage Format | JPG Format | Operating Humidity | 10%~95% RH (Non-condensing) |
| Certifications | CE, FCC | IP Rating/Drop Protection | IP54 / 2m |
4. Application
(1) Power electrical equipment maintenance and overhaul
(2) Routine maintenance of HVAC equipment
(3) Factory manufacturing site inspection and equipment maintenance
(4) Construction application field
(5) Road traffic and bridge construction
(6) Transportation industry and automobile maintenance
(7) Mining and excavation field
(8) Electronic power manufacturing industry
(9)Petroleum/chemical and smelting field
(10) Photovoltaic industry
(11) New energy and environmental protection industries such as LED lighting
(12) Telecommunications industry
