Product Details
Place of Origin: CHINA
Brand Name: BOEN FIRE
Model Number: Discovery R2 、R6
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T
Handheld Remote Laser Natural Gas Leak Detection System
1. Product Overview
The handheld remote laser gas leakage detection system is used for overhead pipelines or areas where inspectors cannot reach. The detection range is 200 meters (Discovery R2) / 30 meters (Discovery R6) and the detection sensitivity is 5 ppm*m.
2. Product Features
(1) 200-mete r(Discovery R2) /30-meter (Discovery R6) detection range, mainly for areas where people cannot access, such as overhead pipelines in residential areas and daily inspections inside households.
(2) Used independently, with its own software management platform

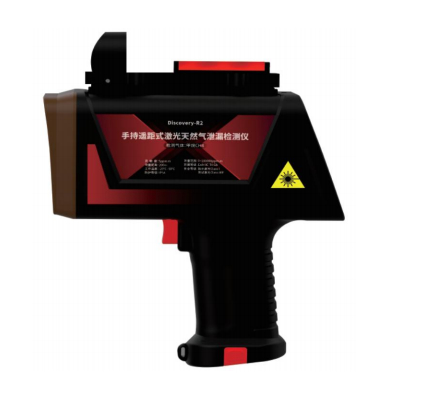

Discovery R2:
Discovery R6:
3. Application
Natural gas extraction, natural gas storage and transportation enterprises, gas operation management companies, major gas companies, professional gas inspection service enterprises.
4.Main Technical Data
|
Discovery R2 |
|
|
Item |
Description |
|
Detecting gases |
Specific to methane, with high specificity |
|
Detection principle |
Tunable Laser Absorption Spectroscopy (TDLAS) |
|
Measurement range |
Full-scale ppm, 100% LEL, 0 - 100% VOL |
|
Sensitivity |
1 ppm |
|
Response time |
0.1s |
|
Inspection system |
ZhiGuang IoT Cloud Inspection Platform Discovery-B1.0 (Brain) |
|
Explosion-proof rating |
Exib IIB T4Gb |
|
Work environment |
Temperature: -25℃ ~ +50℃, < 90% RH, no condensation |
|
Power supply and battery life |
Special lithium-ion rechargeable battery, charging time 6 hours, usage time 10 hours |
|
Dimensions and weight of the design |
Size: Length 230mm * Width 108mm * Height 97mm, Weight: 1600g |
|
Protection level |
IP66 |
|
Sampling flow rate |
1.3 L/min |
|
User interface |
Display: Color touch screen Menu options: Touch screen menu One physical switch button, simple and easy to use |
|
Alarm |
Methane concentration threshold alarm Pump stops running |
|
Volume of the buzzer |
85 decibels (adjustable) |
|
Equipment status indicator |
Measurement mode, pump operation status Alarm sound Communication |
|
Electrical connection |
Charging and Bluetooth communication Equipped with safety ring |
|
Gas connection |
Quick-connect air intake, located on the right side of the body with locking device Quick-connect exhaust outlet |
|
Back strap |
Synthetic material shoulder strap, 30mm wide |
|
Discovery R6 |
|
|
Item |
Description |
|
Types of detectable gases |
Methane |
|
Measurement principle |
Tunable Laser Absorption Spectroscopy (TDLAS) technology |
|
Sensitivity |
5ppm*m |
|
Detection distance |
200m |
|
Response speed |
<0.1s |
|
Instrument weight (including battery and sight) |
650g |
|
Power supply and battery life |
Rechargeable lithium-ion battery, use time >8h |
|
Size |
Length 196mm*Width 146mm*Height 66mm |
|
Exterior protection grade |
IP66 |
|
Working temperature |
-25℃~+50℃ |
|
Work humidity |
<90%RH,non-condensing |
|
Explosion-proof rating |
Exib IIC T4Gb |
|
Detection laser |
Classl human eye safety |
|
Indicating laser |
ClassIIR non-direct vision |
|
Operating System |
Wireless Bluetooth link handheld client, built-in Zhiguang IOT cloud inspection platform Discovery-B1.0(Brain) |
