Product Details
Place of Origin: CHINA
Brand Name: BOEN FIRE
Model Number: Discovery V-A1
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T

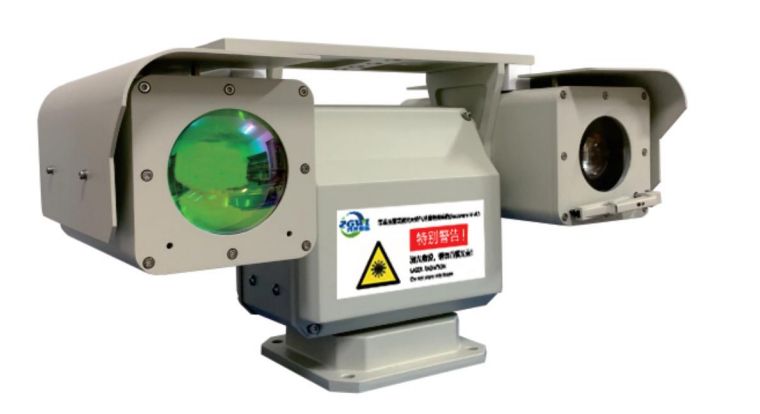

Vehicle-mounted Top-mounted Laser Natural Gas Leak Detection System
1. Product Overview
The vehicle-mounted top-mounted laser natural gas leakage detection system is used for rapid and extensive detection of natural gas pipeline leaks. This system employs a tunable 1653 nanometer wavelength laser and is only used to detect methane gas. The detection range is 150 meters, the detection speed is 70 kilometers per hour, and the detection sensitivity is 5 ppm*m.
2. Product Features
(1) Natural gas extraction, natural gas storage and transportation, gas operation management enterprises, major gas companies, professional daily inspection of gas leaks.
(2) Self-contained software platform, can be used independently, and can also be connected with the client's platform.
(3) Highly specific, only reacting to methane
(4) 360° full-angle scanning without blind spots
(5) Extremely fast detection speed, up to 50 km/h
(6) Detection limit 5 ppm.m
(7) Industrial-grade pan-tilt unit suitable for various harsh detection scenarios.
(8) Modular design, easy to install on any vehicle.
(9) Supports cloud inspection, simple operation and powerful functions.
3. Application
Natural gas extraction, natural gas storage and transportation enterprises, gas operation management companies, major gas companies, professional gas inspection service enterprises.
4. Main Technical Data
|
Discovery V-A1 |
|
|
Technical principle |
Tunable diode laser absorption spectroscopy (TDLAS) |
|
Target gas |
Methane (CH4) |
|
Measurement range |
0~99999ppm.m |
|
Measure the distance |
150m |
|
Sensitivity |
<5ppm.m |
|
Response time |
<0.01s |
|
Detection speed |
50km/h |
|
Power consumption |
<30W |
|
Protection level |
IP66 |
|
Detection laser level |
Class 1 Eye Safety |
|
Indication laser level |
Class IR Must Not Be Directly Viewed |
|
Power supply method |
DC 12V / AC 220V |
|
Weight |
7kg (Testing Instrument) 2kg (Testing Host) |
|
Detector instrument size |
Length: 223mm * Width: 140mm * Height: 210mm |
|
Detector main unit size |
Length: 257mm * Width: 68mm * Height: 226mm |
|
Operation mode |
Wireless Operation (Standard) / Physical Control Keyboard (Optional) |
|
Visible unit |
1080p Ultra HD |
|
Positioning system |
GPS / Beidou (Differential Positioning) |
|
Pan-tilt parameters |
Rotation Speed: Horizontal 0.01°~20°/S; Pitch 0.01°~10°/S; Rotation Angle: Horizontal 0°~360° Continuous Rotation; Pitch -90°~+90°; Preset Position: Supports preset function, can set 200 preset positions; Automatic Cruise: Each can set 10; Cruise Point Accuracy: ±0.1°; Auxiliary Switches: Wiper; Flashlight; Heating; Fan |
|
Working temperature |
-25℃~+50℃ |
|
Inspection platform |
The built-in intelligent light IoT cloud inspection platform Discovery-B1.0 (Brain) has reserved ports that enable data remote transmission for connection with GIS. It can overlay the geographical coordinates of the pipeline network and ensure no missed inspections. It generates a complete report on pipeline network inspection, maintenance and operation. |
|
Operation terminal |
Portable operation tablet: ROM 256GB, RAM 8GB, supports all-IP4G network, has a simple and interactive interface, and is convenient for inspectors to operate. |
