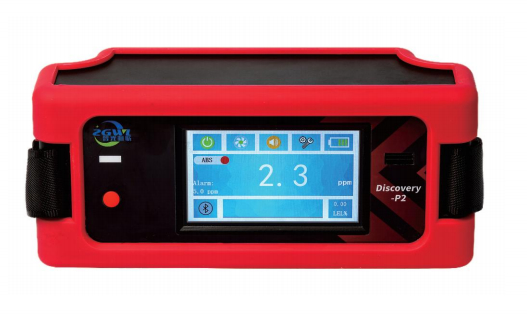

Shoulder Mounted Portable Laser Natural Gas Leak Detector
1. Product Overview
The portable laser gas detector for the shoulder and back is mainly used for pipeline inspection underground and precise location of leakage points. This product applies the most advanced laser gas detection technology TDLAS, using pump suction and internal absorption analysis processing. It has high sensitivity and the detection accuracy is less than 1PPM.
2. Product Features
(1) Mainly for the daily inspection of buried gas pipelines, it is less affected by air currents and has high accuracy.
(2) Used independently, with its own software management platform
(3) Using laser sensing technology, specially developed for detecting gas pipeline leaks
(4) Starts detection at 1PPM, reaction time < 0.1S
(5) Full range detection: PPM, 100% LEL, 100% VOL
(6) Supplemented by the cloud inspection platform
(7) 10-year lifespan
(8) One-click startup, intuitive touchscreen, easy and quick operation
(9) Supports electric vehicle inspection
3. Application
Natural gas extraction, natural gas storage and transportation enterprises, gas operation management companies, major gas companies, professional gas inspection service enterprises.
4. Main Technical Data
|
Discovery P2 |
|
|
Item |
Description |
|
Detecting gases |
Specific to methane, with high specificity |
|
Detection principle |
Tunable Laser Absorption Spectroscopy (TDLAS) |
|
Measurement range |
Full-scale ppm, 100% LEL, 0 - 100% VOL |
|
Sensitivity |
1 ppm |
|
Response time |
0.1s |
|
Inspection system |
ZhiGuang IoT Cloud Inspection Platform Discovery-B1.0 (Brain) |
|
Explosion-proof rating |
Exib IIB T4Gb |
|
Work environment |
Temperature: -25℃ ~ +50℃, < 90% RH, no condensation |
|
Power supply and battery life |
Special lithium-ion rechargeable battery, charging time 6 hours, usage time 10 hours |
|
Dimensions and weight of the design |
Size: Length 230mm * Width 108mm * Height 97mm, Weight: 1600g |
|
Protection level |
IP66 |
|
Sampling flow rate |
1.3 L/min |
|
User interface |
Display: Color touch screen Menu options: Touch screen menu One physical switch button, simple and easy to use |
|
Alarm |
Methane concentration threshold alarm Pump stops running |
|
Volume of the buzzer |
85 decibels (adjustable) |
|
Equipment status indicator |
Measurement mode, pump operation status Alarm sound Communication |
|
Electrical connection |
Charging and Bluetooth communication Equipped with safety ring |
|
Gas connection |
Quick-connect air intake, located on the right side of the body with locking device Quick-connect exhaust outlet |
|
Back strap |
Synthetic material shoulder strap, 30mm wide |
