Combustible Gas Alarm Controller
, Industrial Gas Alarm Controller
, Realtime Concentration Display Gas Alarm Controller
Alarm Modes: |
Low Limit Alarm And High Limit Alarm |
Power Consumption: |
≤ 10W (excluding The Supporting Equipment) |
Accessories: |
Metal Installation Backplate And Supporting Bolts |
Operating Voltage: |
AC220-2A 50Hz |
Signal Transmission Distance: |
≤1500m（4921.26ft）（2.5mm2 ） |
Overall Dimensions: |
400mm X285mm X100mm (15.75in×11.22in×3.94in) |
Weight: |
Approximately 9kg (including The Backup Power Supply) |
Memory Function: |
Equipped With Historical Record Storage Capability |

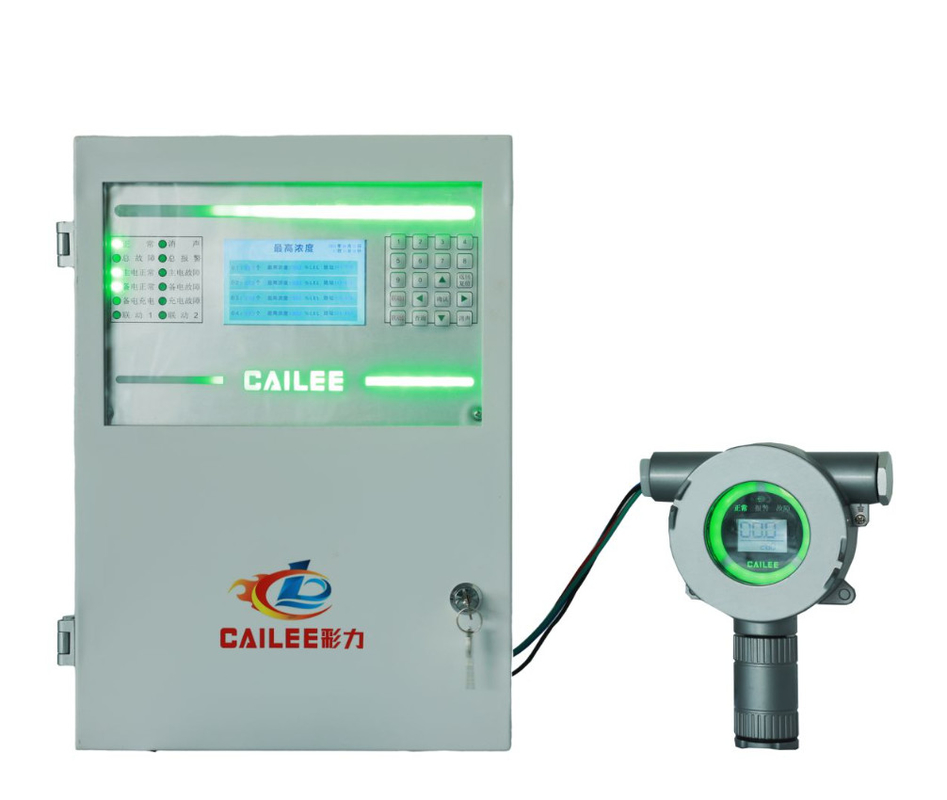

Combustible Gas Alarm Controller Real-time Concentration Display
1. Product Overview
The M201 combustible gas detection system is an industrial-grade safety solution comprising a gas detector and alarm controller. The controller meets GB16808-2008 standards and monitors gas concentrations in ambient air, compatible with multiple gas detectors, actuators, and receivers (collectively termed "addressing units"). Detectors are deployed in hazardous indoor/outdoor leak-prone areas, while the controller operates in safe zones (e.g., control rooms).
Upon detecting gas vapors, the system displays real-time concentration levels. If levels exceed predefined thresholds, audible/visual alarms and control signals activate external safety devices to prevent accidents.
Utilizing RS485 and PowerBus architectures with ModBus RTU protocol, the M201 integrates a microprocessor and high-precision sensors for rapid, sensitive detection. Its user-friendly interface features a Chinese LCD display and keyboard for real-time data monitoring. Advanced software algorithms ensure anti-interference performance and fault diagnostics, guaranteeing stable operation.
2. Product Features
(1) 4-wire bus transmission (A, B, ±24V)
(2) 2-wire PowerBus transmission
(3) Live concentration readout
(4) Intuitive graphical interface
(5) Dual-stage alarms (low/high limits)
(6) Self-diagnostic fault detection
(7) Integrated power conversion
(8) Configurable relay outputs
(9) Event logging capability
(10) Modular expansion support
3. Main Technical Data
| Signal transmission |
RS485,PowerBus |
| Capacity |
The controller has four loops, and the maximum capacity of each loop is 80 (detectors) |
| Control output |
8 groups of programmable and 2 groups of manual relay outputs |
| Contact capacity |
3A/DC24V or 1A/AC220V |
| Visual indication |
4.3-inch liquid crystal display screen, color LED lights |
| Sound pressure level (A-weighted) |
65~110dB@1m |
| Indication error |
±5%FS |
| Operating temperature |
0℃~+40℃ |
| Humidity range |
0~93%RH(without condensation) |
| Pressure range |
86kPa~106kPa |
4.Indicator Lights
| Name of the indicator light |
Color |
Function |
| Normal |
green |
When the system is operating normally, this indicator light is on. |
| Mute |
red |
When the fault sound and alarm sound are eliminated, this indicator light is on. |
| Total fault |
yellow |
When there is a fault between the controller and the detector, this indicator light is on. |
| Total alarm |
red |
When the detector gives an alarm, this indicator light is on. |
| Main power supply normal |
green |
When the main power supply of the controller is normal, this indicator light is on. |
| Main power supply fault |
yellow |
When there is an under-voltage of AC220V, this indicator light is on. |
| Backup power supply normal |
green |
When the backup power supply of the controller is normal, this indicator light is on. |
| Backup power supply fault |
yellow |
When there is a fault with the backup power supply (such as open circuit, under-voltage, etc.), this indicator light is on. |
| Backup power supply charging |
green |
When the backup power supply is charging, this indicator light is on and goes off when it is fully charged. |
| Charging fault |
yellow |
When there is a charging fault of the backup power supply, this indicator light is on. |
| Linkage 1 |
red |
When the No. 1 internal linkage module is activated, this indicator light is on. |
| Linkage 2 |
red |
When the No. 2 internal linkage module is activated, this indicator light is on. |
