Highlight:
Ex Triple Infrared Flame Detector
, Self Learning Infrared Flame Detector
, ATEX Triple Infrared Flame Detector
Ex Triple-Infrared Flame Detector Certified Self-Learning Function
1. Product Overview

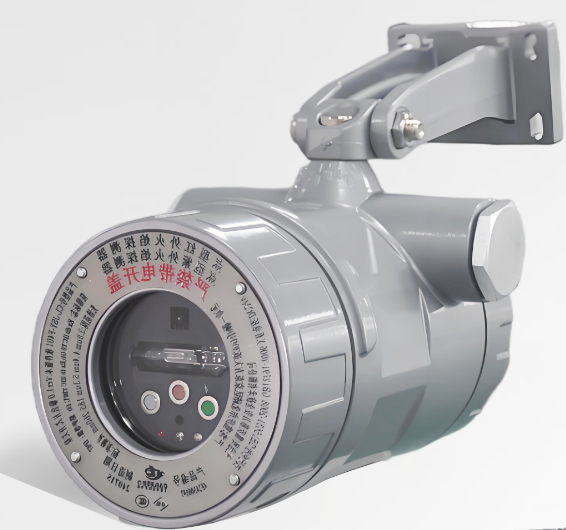

The JSY-F401-A is an ATEX-certified multi-spectral flame detector designed for reliable early fire detection across multiple fuel types.
Featuring triple-IR sensors with sapphire optical filtration, the detector delivers exceptional response to various flame types. Its advanced signal processing combines time-frequency domain analysis with proprietary Fourier algorithms to effectively distinguish real fire signatures from ambient light/thermal noise. The robust multi-sensor design ensures stable operation in extreme conditions (-40°C to +85°C, 95% RH) while minimizing false alarms in challenging environments.
2. Product Features
(1) Triple-IR spectrum analysis with time/frequency domain verification
(2) Field-adjustable sensitivity
(3) Adaptive self-learning capability
(4) EMI shielding (up to 30V/m)
(5) Solar-blind technology for false alarm rejection
(6) Rugged IP66/Ex-rated housing
(7) Precision FOV adjustment indicators
(8) Complies with GB 15631-2008 & GB 12791-2006 standards
3. Application
(1) Critical infrastructure:Nuclear facilities,Power substations,Transformer yards
(2) Process industries:Breweries/distilleries,Pharmaceutical plants,Chemical processing
(3) High-risk areas:Paint spray booths,LNG terminals,Flammable storage
(4) Industrial facilities:Power generation plants,Petrochemical complexes,Semiconductor fabs
4. Main Technical Data
| Rated voltage |
24V DC (18V DC~36V DC) |
| Operating current |
≤20mA |
| Alarm current |
≤25mA / DC 24 V |
| Ambient temperature |
-10~+55 °C |
| Ambient humidity |
≤95% relative humidity without condensation |
| Spectral response |
3.8um 4.4um 5.3um |
| Response Time |
N-heptane ≤15s |
| Adjustable sensitivity |
Level I (The default level is Level I at the factory and it is locked.) |
| Detection angle |
Vertical viewing angle: 90°; Horizontal viewing angle: 120° |
| Protection level |
IP67 |
| Output mode |
Standard relay output (fault, fire alarm), 4-20mA (optional) |
| Relay contact capacity |
1A/AC 125V 2A/DC 30V |
| Material |
Cast aluminum (stainless steel is optional) |
| Implementation standard |
GB15631-2008 GB12791-2006 |
| Dimensions |
165mmx136mmx 100m(6.50in×5.35in×3.94in) |
| Weight |
1.35kg (2.976lbs) |
| Cable outlet thread |
Standard G3/4, two pieces |
| Explosion-proof mark |
Ex db ⅡC T6 Gb,Ex tb IIIC T80℃ Db |
| Detection distance |
Fuel |
Fire source size |
Details |
| N-Heptane |
0.3mx0.3m(lft.x1ft.) |
50m(164ft.) |
| Petrol |
0.3mx0.3m(1ft.x 1ft.) |
40m(131ft.) |
| Diesel fuel |
0.3mx0.3m(1ft.x lft.) |
35m(114ft.) |
| Kerosene |
0.3mx0.3m(lft.x1ft.) |
35m(114ft.) |
| Ethanol |
0.3mx0.3m(lft.x lft.) |
30m(98ft.) |
| Methane |
0.5mx0.2m(1.7ft.x0.7ft.) |
30m (98ft.) |
| Sheet of paper |
0.3mx0.3m(1ft.x 1ft.) |
25m(82ft.) |
5.Indicator Lights
| Status |
Indicator light |
| Operation Indicator Light (Green) |
Always on |
| Alarm Confirmation Indicator Light (Red) |
It flashes for early warning and stays on when in alarm. |
| Fault Indicator Light (Blue) |
When a fault occurs, the blue light stays on (and the red light goes out). When the device is powered on, it flashes, indicating the self-checking and self-adaptive status. |
6.Complete Product Set
| Name |
Quantities |
Unit of measure |
JSY-F401-A
Point-type Infrared Flame Detector |
1 |
piece |
| Instruction Manual |
1 |
copy |
| Explosion-proof Certificate |
1 |
copy |
| Mounting Bracket |
1 |
item |
| Fastenings |
1 |
item |
| M8 Nut |
1 |
piece |
| M8x45 Hexagon Socket Head Cap Screw |
1 |
piece |
| M8x25 Hexagon Socket Head Cap Screw |
1 |
piece |
| Flame Detection Remote Controller YC-F1 |
1 |
piece per batch |
