Product Details
Place of Origin: CHINA
Brand Name: BOEN FIRE
Certification: ISO9001、CCCF、CNEX、SIL2
Model Number: GT-CDI2920Ex
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T
Certification & Standards: |
Including Explosion-proof, SIL Certifications, Compliant With National Standards |
Detection Capability: |
Catalytic Combustion (infrared Optional), 3~100%LEL Range, ≤30s Response |
Sensor: |
Hot-swappable, 3-year (catalytic)/5-year (infrared) Lifespan, For Methane, Propane |
Alarm: |
25%/50%LEL High/low Thresholds, Audible-visual + Relay Output, 3-color Indicator |
Communication: |
4-20mA + RS485, Transmission Distance ≤1000m |
Hardware: |
DC24V (18~28V), -40~70℃ Operating Temp, IP66, Cast Aluminum/stainless Steel |
Display & Operation: |
2.2-inch Color Screen, Infrared Remote (≤5m) |
Maintenance: |
Calibration Every 6 Months, Annual Verification, Recalibrate After Sensor Replacement |
Certification & Standards: |
Including Explosion-proof, SIL Certifications, Compliant With National Standards |
Detection Capability: |
Catalytic Combustion (infrared Optional), 3~100%LEL Range, ≤30s Response |
Sensor: |
Hot-swappable, 3-year (catalytic)/5-year (infrared) Lifespan, For Methane, Propane |
Alarm: |
25%/50%LEL High/low Thresholds, Audible-visual + Relay Output, 3-color Indicator |
Communication: |
4-20mA + RS485, Transmission Distance ≤1000m |
Hardware: |
DC24V (18~28V), -40~70℃ Operating Temp, IP66, Cast Aluminum/stainless Steel |
Display & Operation: |
2.2-inch Color Screen, Infrared Remote (≤5m) |
Maintenance: |
Calibration Every 6 Months, Annual Verification, Recalibrate After Sensor Replacement |

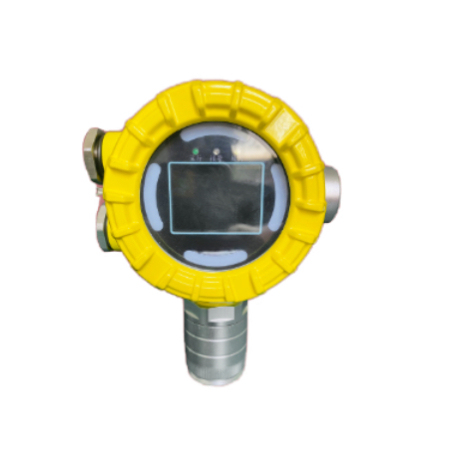

GT-CDI2920Ex Industrial and Commercial Point-Type Flammable Gas Detector
1.Product Overview
This product is an explosion-proof device, suitable for Zone I and Zone II environments where there may be leakage or explosion hazards of flammable or toxic and harmful gases in industries such as petroleum, chemical engineering, gas storage stations, and wine factory production workshops. It is not applicable to Zone 0 or underground coal mine environments. The detector can conduct safe detection and give advance alarms for gas leakage accidents.
The detector features TFT liquid crystal display, infrared remote control, three-wire 4mA-20mA output, RS485 bus communication (Modbus RTU protocol), and passive contact output functions.
2.Product Features
(1) It features a 256-color TFT liquid crystal display (320*240), infrared remote control function, and is easy to debug.
(2) Using hot-swappable sensor bodies makes it convenient to replace them at the usage site.
(3) It has an audible and visual alarm function. When there is a gas leak in the monitored area, the detector will emit urgent sound and light alarm signals.
(4) It has the function of temperature and humidity measurement, which can monitor the temperature and humidity of the usage area and output the data via RS485 to the control system.
(5) It has zero-point correction function, which can avoid measurement errors caused by zero-point drift.
(6) Standard RS485 interface based on Modbus (RTU) protocol.
(7) It can be used in conjunction with our company's JB-QB-CH210 combustible gas alarm controller, PLC, DCS and other systems.
(8) The system is processed by a single-chip microcomputer, featuring strong stability, strong anti-interference capability and low power consumption.
3.Main Technical Data
| Item | Content |
| Detection Principle | Standard: Catalytic Combustion Optional: Infrared Absorption |
| Structural Feature | Integrated (Transmitter + Hot-swappable Sensor) |
| Sensor Lifespan | Catalytic: 3 years (in clean atmosphere)
|
| Detection Range | 3～100%LEL (Combustible Gas) |
| Response Time | ≤30s |
| Sampling Method | Natural Diffusion |
| Resolution | 1%LEL |
| Measurement Error | Full Scale ±3%LEL |
| Low Alarm Value | 25%LEL |
| High Alarm Value | 50%LEL |
| Applicable Gas | Combustible Gas (Methane, Propane) |
| Display Mode | TFT 2.2-inch LCD Color Screen |
| Signal Transmission | 4mA～20mA output,
|
| Signal Bus Transmission Distance | ≤1000m |
| Working Voltage | DC18V～DC28V (Rated: DC24V) |
| Power Consumption | <2W |
| Temperature Range | -40℃～+70℃ |
| Humidity Range | 0～95%RH (No Condensation) |
| Pressure Range | 86kPa～106kPa |
| Shell Material | Metal (Cast Aluminum or Stainless Steel) |
| Overall Weight | Cast Aluminum 1.6KG, Stainless Steel 6Kg |
| Inlet Thread | G3/4" |
| Installation Method | Standard Bracket Wall-mounted Installation |
| Explosion-proof Mark | Ex d IIC T6 Gb/Ex tD A21 IP66 T80℃ |
| Protection Class | IP66 |
| Dimensions | 251×204×116 (mm) |
