Gas Detector Real-Time Concentration & Temp Readout RS485 4-20mA
Industrial Ex Gas Detector with Multi-Function: IP66, Sound-Light Alarm, Real-Time Concentration & Temp Readout | Dual Output Options
1.Product Overview
The GTYQ-JSY-201/A industrial-grade point gas detector is an explosion-proof device integrating real-time concentration display, audible/visual alarms, and ambient temperature monitoring.

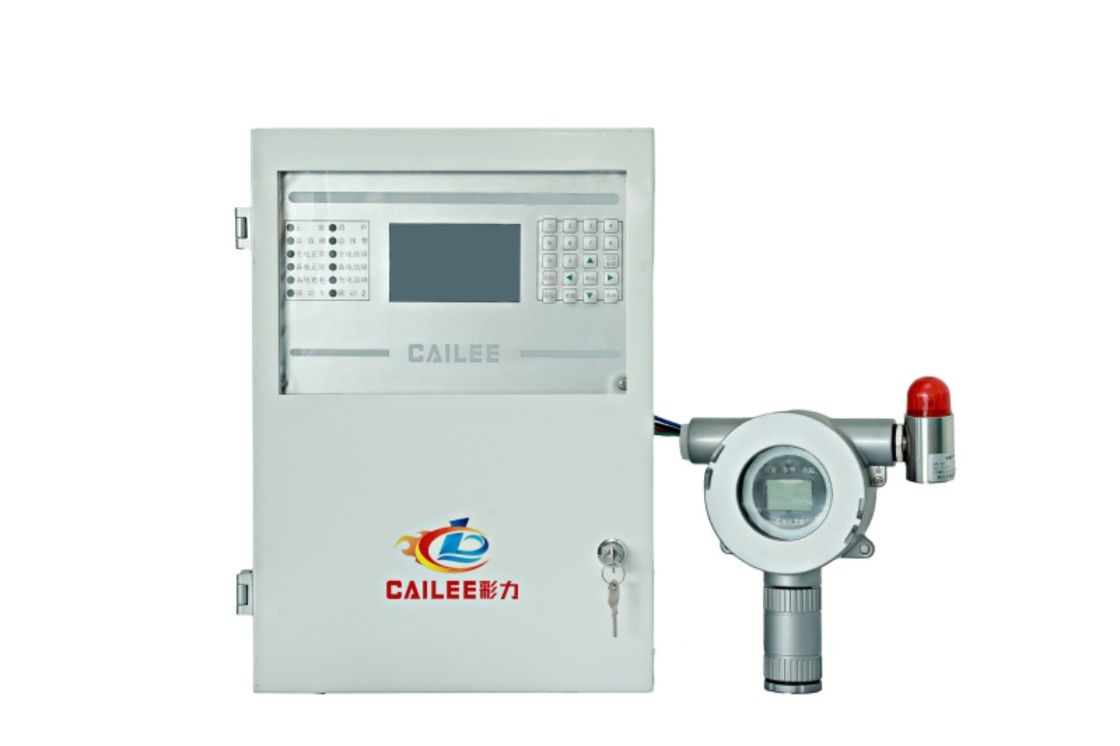

Operating on natural diffusion principle with catalytic combustion sensing technology, it delivers superior sensitivity and measurement consistency. The industrial-grade segment LCD simultaneously displays gas concentration and ambient temperature. Upon reaching preset thresholds, the unit triggers strobe/horn alarms and can activate ventilation systems. Featuring 4-20mA output for direct DCS integration or RS485 connectivity with our M201 control panel for centralized monitoring. The PowerBus 2-wire option simplifies installation. Built with embedded microcontroller architecture for reliable operation with intuitive functionality.
2.Product Features
(1) Advanced false-alarm filtering algorithm
(2) 360° LED status ring
(3) Hot-swappable sensor modules
(4) EMI/RFI shielding
(5) Multi-interface options: RS485 (4-wire), PowerBus (2-wire), 4-20mA
(6) Certified industrial housing (IP66)
(7) Explosion-proof & corrosion-resistant construction
(8) Complies with GB15322.1-2019, GB/T 3836.1-2021, GB/T 3836.2-2021
3. Application
(1) Flammable gas/vapor risk areas.
(2) Alcohol storage & fuel depots
(3) LPG/CNG stations & refineries
(4) Chemical plants & power stations
(5) Gas distribution facilities
(6) Semiconductor cleanrooms
(7) Pharma production
4.Main Technical Data
| Operating voltage |
DC 24V |
| Operating current |
≤50mA / DC 24V |
| Alarm current |
≤65mA / DC 24V |
| Detection principle |
Catalytic Combustion Type |
| Detection range |
3~100%LEL |
| Resolution |
0.1%LEL |
| Measurement error |
Range indication deviation: ±5%LEL |
| Sampling method |
Natural diffusion |
| Ambient temperature |
-40℃~+70℃ |
| Ambient humidity |
≤95% RH without condensation |
| Response time |
≤20s |
| Protection level |
IP66 |
| Output mode |
RS485 bus, POWERBUS bus,
Relay passive contacts (or 4 - 20mA) |
| Relay contact capacity |
0.5A/AC 125V 1A/DC 24V |
| Material |
Cast aluminum (stainless steel optional) |
| Implementation standard |
GB15322.1-2019 |
| Dimensions |
L:201mm × W:162mm × H:50mm
(L:7.91in×W:6.38in×H:1.97in)
|
| Weight |
1.2kg(2.645lbs) |
| Color |
Metallic silver |
| Cable outlet thread |
Standard: 2 pieces of G3/4 |
| Explosion-proof mark |
Ex db ⅡC T6 Gb/ Ex tb ⅢC T80℃ Db |
| Sensor service life |
2 years |
| Alarm set value |
Low limit: 25%LEL, High limit: 50%LEL |
5.Indicator Lights
| Status |
Indicator light |
| Operation Indicator Light (Green) |
Flashes at 0.5S intervals |
| Alarm Confirmation Indicator Light (Red) |
Flashes for 0.5S when low-limit alarm is triggered, and stays on when high-limit alarm is triggered. |
| Fault Indicator Light (Blue) |
Stays on |
6.Complete Product Set
| Name |
Quantities |
Unit of measure |
GTYQ-JSY-201
Point-type combustible gas detectors for industrial and commercial applications |
1 |
piece |
| Instruction Manual |
1 |
portion |
| Explosion-proof Certificate |
1 |
portion |
| Connecting bolt M6x30 |
2 |
piece |
| Mounting Bracket |
1 |
piece |
| Remote control |
1 |
unit/batch |
