Product Details
Place of Origin: CHINA
Brand Name: BOEN FIRE
Certification: ISO9001、CCCF、CNEX、SIL2
Model Number: GT-CDI282Ex/IR
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T
Detection: |
Infrared Hot-swappable, For Methane, 3-100%LEL |
Explosion & Protection: |
Ex D IIB T6 Gb, IP66, Cast Aluminum Shell |
Display & Control: |
1.8-inch TFT Color Screen, Infrared Remote Control |
Signal Output: |
4-20mA, RS485, Alarm Relay |
Power & Consumption: |
DC24V, <2W, Transmission ≤1000m |
Environment: |
-40~70℃, 0-95%RH (no Condensation), 86-106kPa |
Life & Maintenance: |
Sensor Life 3 Years, Hot-swappable Replacement |
Installation: |
M25×1.5 Thread (adapter Optional) |
Detection: |
Infrared Hot-swappable, For Methane, 3-100%LEL |
Explosion & Protection: |
Ex D IIB T6 Gb, IP66, Cast Aluminum Shell |
Display & Control: |
1.8-inch TFT Color Screen, Infrared Remote Control |
Signal Output: |
4-20mA, RS485, Alarm Relay |
Power & Consumption: |
DC24V, <2W, Transmission ≤1000m |
Environment: |
-40~70℃, 0-95%RH (no Condensation), 86-106kPa |
Life & Maintenance: |
Sensor Life 3 Years, Hot-swappable Replacement |
Installation: |
M25×1.5 Thread (adapter Optional) |

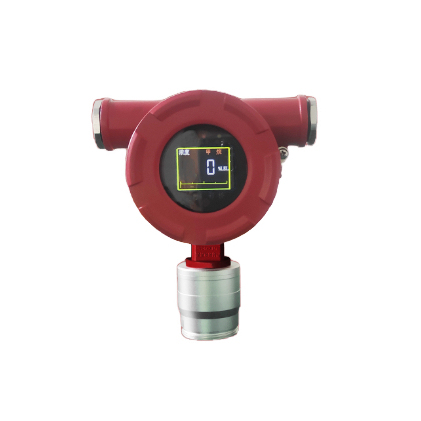

GT-CDI282Ex/IR Industrial and Commercial Point-Type Flammable Gas Detector
1.Product Overview
This product is an explosion-proof device, suitable for Zone I and Zone II environments where there may be leakage or explosion hazards of flammable or toxic and harmful gases in industries such as petroleum, chemical engineering, gas storage stations, and wine factory production workshops. It is not applicable to Zone 0 or underground coal mine environments. The detector can conduct safe detection and give advance alarms for gas leakage accidents.
The detector features TFT liquid crystal display, infrared remote control, three-wire 4mA-20mA output, RS485 bus communication (Modbus RTU protocol), and passive contact output functions.
2.Product Features
(1) It adopts a 256-color TFT LCD (128*160) display and an infrared remote control function, making it convenient to adjust.
(2) It uses a hot-swappable probe sensor, which is easy to replace in different use sites.
(3) It has a zero-point calibration function, which can avoid measurement errors caused by zero-point drift.
(4) It has a standard RS485 interface based on the Modbus (RTU) protocol.
(5) It can be connected with JB-QB-CH210 combustible gas alarm controllers produced by companies such as PLC and DCS.
(6) It adopts a single-chip microcomputer processing system, with strong stability and anti-interference ability, and low power consumption.
3.Main Technical Data
| Item | Content |
| Detection Principle | Infrared (Hot-swappable Type) |
| Sampling Method | Natural Diffusion |
| Detection Range | (3~100) %LEL |
| Resolution | 1%LEL |
| Response Time | ≤30s |
| Measurement Error | Full Scale ±3%LEL |
| Low Alarm Value | 25%LEL |
| High Alarm Value | 50%LEL |
| Applicable Gas | Methane |
| Sensor Life | 3 Years |
| Display Method | TFT 1.8-inch LCD Color Screen |
| Signal Transmission Method | Standard RS485 Interface Alarm Relay Output 4mA~20mA Output |
| Signal Bus Transmission Distance | ≤1000m |
| Working Voltage | DC24V |
| Power Consumption | <2W |
| Temperature Range | -40℃~+70℃ |
| Humidity Range | 0~95%RH (No Condensation) |
| Pressure Range | 86kPa~106kPa |
| Shell Material | Cast Aluminum |
| Overall Weight | 1Kg |
| Mounting Thread | M25×1.5 (M to NPT Adapter Optional) |
| External Dimensions | 153×172×96 (mm) |
| Protection Class | IP66 |
| Explosion-proof Mark | Ex d IIB T6 Gb/Ex tb IIIC T80℃ Db |
| Note | - |
