Ex Point Type Flame Detector
, Multi Spectral Flame Detector
, UV IR Flame Detector IP67

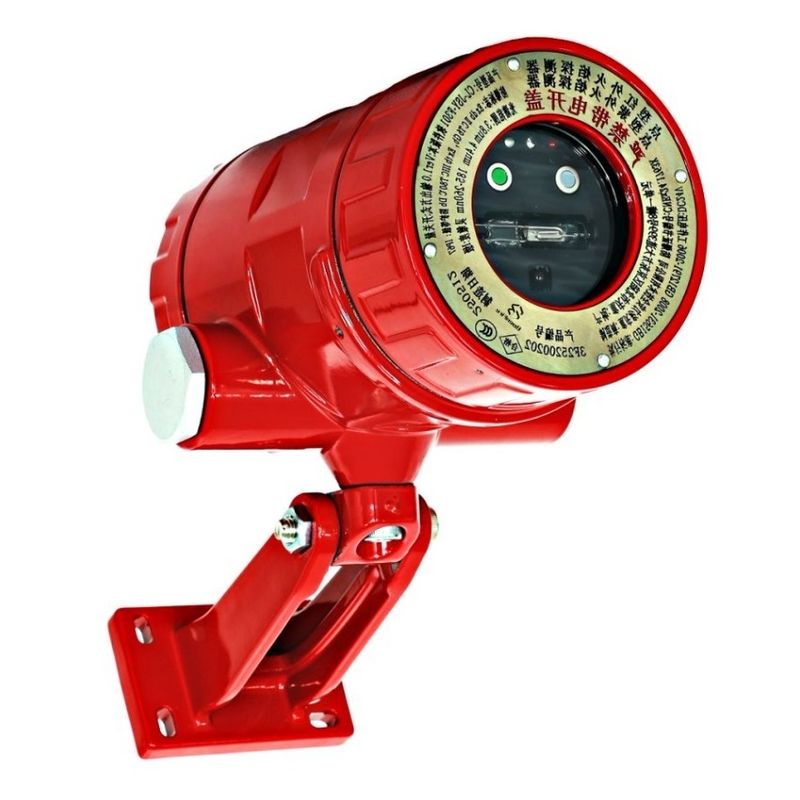

Ex Point Type UV IR Flame Detector Extremely Low False Alarm Rate
1.Product Overview
This flame detector1 is an explosion-proof multi-spectral flame detector, suitable for various fuel types and can provide early warnings.
This detector is equipped with two infrared wavelength sensors, an ultraviolet sensor, and a sapphire optical filter. It has a very high response characteristics to a variety of fuel types of combustion flame,Tthe detector for the collection of multiple signal data, through the unique time domain, frequency domain signal processing and Fourier fuzzy algorithm, combined with interference source logic comprehensive judgment processing, to eliminate the interference of ambient light, thermal body radiation, can maximize the suppression of false alarm. Therefore, It is well suitable for applications in related environments such as indoor and outdoor open air where multiple false alarm sources exist.The special fire signal processing algorithm and multi-sensor technology have greatly improved the sensitivity of the detector, enabling it to operate in harsh industrial environments such as high/low temperatures and high humidity.
2.Product Features
(1)Multiple judgments based on Multi-Frequency infrared, ultraviolet, time domain, and frequency domain.
(2)Sensitivity : be set on-site.
(3)Suitable for various fuel types.
(4)Self - learning function.
(5)Resistance to electromagnetic interference.
(6)False alarm prevention and solar blind feature.
(7)Patented and industrialized exterior design.
(8)Unique indication for field - of - view angle adjustment.
(9)Dustproof, explosion-proof, anti-corrosion and waterproof.
(10)Complies with the national standard GB 15631 - 2008 "Special Fire Detectors" and GB 12791 - 2006 "Point - type Ultraviolet Flame Detectors".
3. Application
(1)Brewing industry and wine storage in warehouses
(2)Spray painting workshops
(3)Natural gas exploration and production enterprises
(4)Pharmaceutical industry
(5)Paint - manufacturing, storage, and transportation
(6)Chemicals - production, storage, and transportation
(7)Power stations - pump areas, machine rooms, and unattended areas
(8)Petrochemical products - production, storage, and transportation
(9)Large factory warehouses - storage of flammable materials
(10)Printing - solvent handling, flattening, and drying processes
(11)Chip production workshops
4.Main Technical Data
| Nominal Voltage |
24V DC (18V DC~36V DC) |
| Operating current |
≤20 mA |
| Alarm current |
≤25 mA / DC 24 V |
| Ambient temperature |
-10~+55 °C |
| Ambient humidity |
≤95% relative humidity without condensation |
| Spectral response |
3.8um 4.4um 185-260nm |
| Fire response time |
N-heptane ≤15s |
| Adjustable sensitivity |
Level I (The default level is Level I at the factory and it is locked.) |
| Detection angle |
Vertical viewing angle: 90°; Horizontal viewing angle: 120° |
| Protection level |
IP67 |
| Output mode |
Standard relay output (fault, fire alarm), 4-20mA |
| Relay contact capacity |
1A/AC 125V 2A/DC 30V |
| Material |
Cast aluminum (stainless steel is optional) |
| Implementation standard |
GB 15631-2008 GB 12791-2006 |
| Dimensions |
φ100mm/H165mm(φ3.94in/H6.50in) |
| Weight |
1.35kg (2.976lbs) |
| Color |
Silver, Red (Customizable) |
| Cable outlet thread |
Standard G3/4, two pieces |
| Explosion-proof mark |
Ex db ⅡC T6 Gb,Ex tb IIIC T80℃ Db |
| Detection distance |
Fuel |
Fire source size |
Details |
| N-Heptane |
0.3mx0.3m(lft.x1ft.) |
50m(164ft.) |
| Petrol |
0.3mx0.3m(1ft.x 1ft.) |
40m(131ft.) |
| Diesel fuel |
0.3mx0.3m(1ft.x lft.) |
35m(114ft.) |
| Kerosene |
0.3mx0.3m(lft.x1ft.) |
35m(114ft.) |
| Ethanol |
0.3mx0.3m(lft.x lft.) |
30m(98ft.) |
| Methane |
0.5mx0.2m(1.7ft.x0.7ft.) |
30m (98ft.) |
| Sheet of paper |
0.3mx0.3m(1ft.x 1ft.) |
25m(82ft.) |
5.Indicator Lights
The JSY-F301 flame detector is equipped with three status indicator lights, which are used to indicate its working status.
| Status |
Indicator light |
| Operation Indicator Light (Green) |
Always on |
| Alarm Confirmation Indicator Light (Red) |
It blinks for early warning and is always on for an alarm. |
| Fault Indicator Light (Blue) |
When a fault occurs, the blue light is always on (and the red light goes out). When the device is powered on, it blinks to show the self-checking and self-adaptive status. |
6.Complete Product Set
| Name (of a thing) |
Quantities |
Unit (of measure) |
JSY-F301
Point-type Infrared Flame Detector
Point-type Ultraviolet Flame Detector |
1 |
piece |
| Instruction Manual |
1 |
copy |
| Explosion-proof Certificate |
1 |
copy |
| Mounting Bracket |
1 |
item |
| Connecting Piece |
1 |
item |
| M8 Nut |
1 |
piece |
| M8x45 Hexagon Socket Head Cap Screw |
1 |
piece |
| M8x25 Hexagon Socket Head Cap Screw |
1 |
piece |
| Flame Detection Remote Controller YC-F1 |
1 |
1 piece per batch |
