CNEX UV IR Flame Detector
, Quad Band Flame Detector
, Dust Proof IR Flame Detector

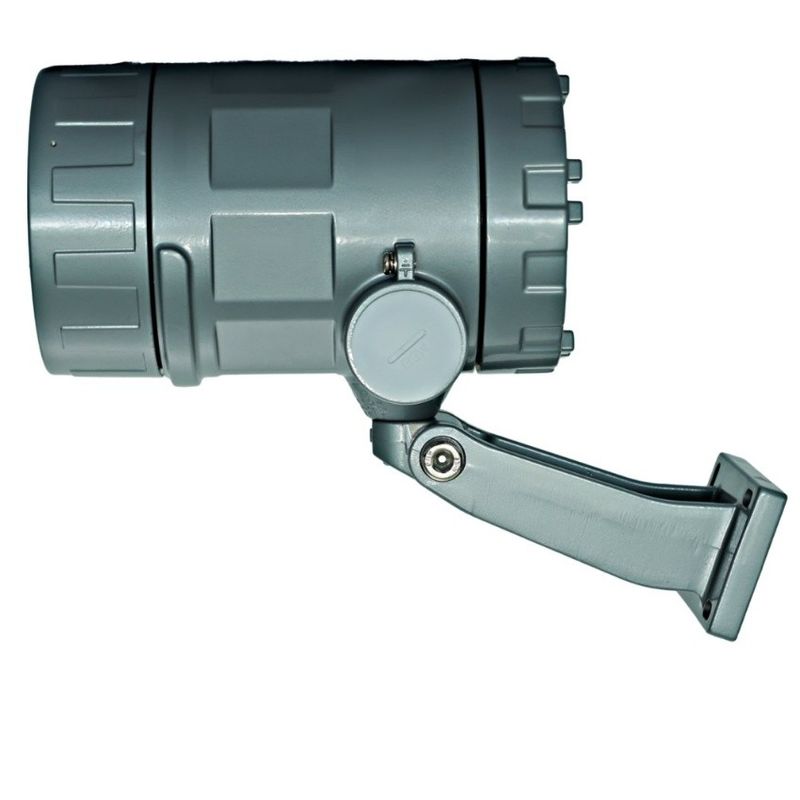

CNEX Self-learning Dust-proof Quad-Band UV IR Flame Detector
1. Product Overview
This advanced explosion-proof multi-spectral flame detector incorporates three infrared wavelength sensors and one ultraviolet sensor, fitted with a sapphire optical filter. By leveraging multi-spectral detection technology, it is capable of precisely recognizing combustion flames from various fuel types. The built-in signal processing systems for time-domain and frequency-domain, along with Fourier fuzzy algorithms and interference source logic analysis, can effectively reduce the impact of interference factors such as ambient light and thermal body radiation. This significantly lowers the false alarm rate, enabling stable operation in both complex indoor environments and open-air sites with abundant interference sources.
The detector utilizes specialized fire signal processing algorithms to coordinate the joint operation of multiple sensors, leading to a notable enhancement in detection sensitivity. Even under extreme industrial conditions like high/low temperatures and high humidity, it can quickly react and provide early fire warnings, offering a dependable safeguard for safety protection.
2. Product Features
(1) Adopts a comprehensive judgment system that combines multi-frequency infrared, ultraviolet, time domain, and frequency domain analyses, effectively reducing false alarms and achieving solar blind functionality.
(2) Offers on-site sensitivity adjustment and a self-learning function for enhanced adaptability.
(3) Features a patented, industrialized appearance design with unique field-of-view angle adjustment markings.
(4) Built with dust-proof, explosion-proof, anti-corrosion, and rain-proof capabilities, ensuring resistance to electromagnetic interference.
(5) Fully complies with national standards GB 15631 - 2008 "Special Fire Detectors" and GB 12791 - 2006 "Point-type Ultraviolet Flame Detectors".
3. Application
(1) High-risk special fire scenarios: Locations prone to deflagration risks.
(2) Key energy facilities: Nuclear power plants, converter stations, transformer zones and other core power-related areas.
(3) Industries handling flammable and explosive materials.
(4) High-hazard operation workshops.
(5) Specific industrial settings: Safety protection for pharmaceutical industry, large factory warehouses storing inflammables, and chip production workshops.
4. Main Technical Data
| Rated voltage |
24V DC (18V DC~36V DC) |
| Operating current |
≤20mA |
| Alarm current |
≤25 mA / DC 24 V |
| Ambient temperature |
-10~+55 °C |
| Ambient humidity |
≤95% relative humidity without condensation |
| Spectral response |
3.8µm 4.4µm 5.3µm 185-260nm |
| Response Time |
N-heptane ≤15s |
| Adjustable sensitivity |
Level I (The default level is Level I at the factory and it is locked.) |
| Detection angle |
Vertical viewing angle: 90°; Horizontal viewing angle: 120° |
| Protection level |
IP67 |
| Output mode |
Standard relay output (fault, fire alarm), 4-20mA (optional) |
| Relay contact capacity |
1A/AC 125V 2A/DC 30V |
| Material |
Cast aluminum (stainless steel is optional) |
| Implementation standard |
GB15631-2008 GB12791-2006 |
| Dimensions |
165mmx136mmx 100m(6.50in×5.35in×3.94in) |
| Weight |
1.35kg (2.976lbs) |
| Cable outlet thread |
Standard G3/4, two pieces |
| Explosion-proof mark |
Ex db ⅡC T6 Gb,Ex tb IIIC T80℃ Db |
| Detection distance |
Fuel |
Fire source size |
Details |
| N-Heptane |
0.3mx0.3m(lft.x1ft.) |
50m(164ft.) |
| Petrol |
0.3mx0.3m(1ft.x 1ft.) |
40m(131ft.) |
| Diesel fuel |
0.3mx0.3m(1ft.x lft.) |
35m(114ft.) |
| Kerosene |
0.3mx0.3m(lft.x1ft.) |
35m(114ft.) |
| Ethanol |
0.3mx0.3m(lft.x lft.) |
30m(98ft.) |
| Methane |
0.5mx0.2m(1.7ft.x0.7ft.) |
30m (98ft.) |
| Sheet of paper |
0.3mx0.3m(1ft.x 1ft.) |
25m(82ft.) |
5. Indicator Lights
| Status |
Indicator light |
| Operation Indicator Light (Green) |
Always on |
| Alarm Confirmation Indicator Light (Red) |
It flashes for early warning and stays on when in alarm. |
| Fault Indicator Light (Blue) |
When a fault occurs, the blue light stays on (and the red light goes out). When the device is powered on, it flashes, indicating the self-checking and self-adaptive status. |
6. Complete Product Set
| Name |
Quantities |
Unit of measure |
JSY-F401/A
Point-type Infrared Flame Detector
Point-type Ultraviolet Flame Detector |
1 |
piece |
| Instruction Manual |
1 |
copy |
| Explosion-proof Certificate |
1 |
copy |
| Mounting Bracket |
1 |
item |
| Fastenings |
1 |
item |
| M8 Nut |
1 |
piece |
| M8x45 Hexagon Socket Head Cap Screw |
1 |
piece |
| M8x25 Hexagon Socket Head Cap Screw |
1 |
piece |
| Flame Detection Remote Controller YC-F1 |
1 |
piece per batch |
