Product Details
Brand Name: CDI
Certification: UL，CMC，ETL，RoHS，GS，CE，3C
Model Number: CDI-260B+
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union
Infrared Resolution: |
256×192 |
Temperature Measurement Range: |
-20℃~550℃ |
Thermal Sensitivity: |
<50mK @25℃ |
Image Modes: |
Thermal Imaging, Visible Light, T-Mix, Picture-in-Picture |
Storage Capacity: |
Built-in 32GB |
Protection Rating: |
IP65, 2m Drop Protection |
Battery Specification: |
Li-ion 3.7V/5000mAh Rechargeable Lithium Polymer Battery |
Color Palettes: |
Iron Red, Rainbow, White Hot, Black Hot, Red Hot, Lava, High-Contrast Rainbow |
Infrared Resolution: |
256×192 |
Temperature Measurement Range: |
-20℃~550℃ |
Thermal Sensitivity: |
<50mK @25℃ |
Image Modes: |
Thermal Imaging, Visible Light, T-Mix, Picture-in-Picture |
Storage Capacity: |
Built-in 32GB |
Protection Rating: |
IP65, 2m Drop Protection |
Battery Specification: |
Li-ion 3.7V/5000mAh Rechargeable Lithium Polymer Battery |
Color Palettes: |
Iron Red, Rainbow, White Hot, Black Hot, Red Hot, Lava, High-Contrast Rainbow |

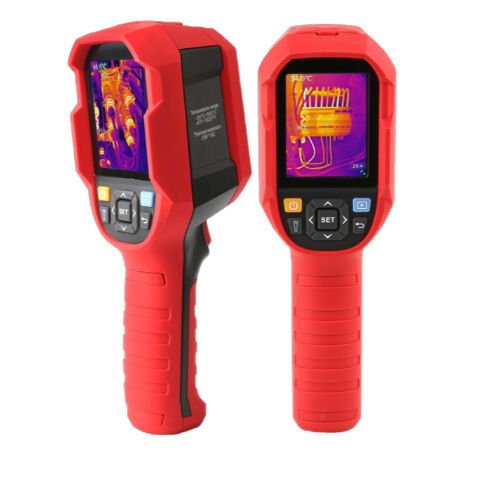

CDI-260B+ Infrared Thermal Imager
1. Product Overview
The CDI-260B+ is an extremely cost-effective handheld infrared thermal imager that seamlessly combines high-precision imaging with temperature measurement capabilities. It is designed to be lightweight and portable, with comprehensive functions. Its temperature measurement range is wide, from -20°C to 550°C, which can meet the needs of various application scenarios. This device features a 256×192 infrared resolution and supports super-resolution technology up to 512x384, enabling the presentation of high-definition infrared images. It is equipped with center-point temperature measurement, high/low temperature tracking, LED auxiliary lighting, and high/low temperature alarm functions. It also has an IP65 protection level and two-meter shock resistance feature, ensuring reliable performance in various harsh working conditions. Additionally, it is paired with professional infrared image analysis software, allowing users to conduct in-depth analysis of every detail in the later stage, and better understand and evaluate the test results.
2. Product Features
(1) Infrared resolution: 256 x 192
(2) Frame rate: 25Hz
(3) Temperature measurement range: -20℃-550℃
(4) T-Mix Fusion Version 2.0
(5) Supports 2X super resolution (512×384) on device and PC
(6) Full-screen max/min temperature tracking
(7) High/low temperature alarm: Image, buzzer, LED flashing
(8) LED light
(9) PC analysis software, WIFI connection to mobile APP for software analysis
(10) Four image modes: Thermal imaging, T-Mix, Picture-in-Picture, Visible light
(11) Seven color palettes optional
(12) Built-in 32GB storage
(13) Adjustable emissivity
(14) Three-proof design: IP65 / 2m drop resistance
(15) 1/4 screw hole on the bottom, compatible with tripods
3. Main Technical Data
| Item | Content | Item | Content |
| Detector Type | Uncooled Infrared Detector | Color Palettes | Iron Red, Rainbow, White Hot, Black Hot, Red Hot, Lava, High-Contrast Rainbow |
| Infrared Resolution | 256×192 | Image Modes | Thermal Imaging, Visible Light, T-Mix, Picture-in-Picture |
| Super Resolution | 512×384 | Image Format | JPG |
| Infrared Response Band | 8~14μm | Storage | Built-in 32GB |
| Pixel Size | 12μm | Data Interface | Type-C USB |
| Frame Rate | ≤25Hz | Photo Capture | √ |
| Thermal Sensitivity | <50mK @25℃ | Video Recording | √ |
| Temp Response Time | ≤500ms | LED Light | √ |
| Temp Range | -20℃~550℃ | Screen Brightness Adjustment | √ |
| Temp Accuracy | ±1.5℃ or 1.5% (whichever is larger, target temp 20℃-120℃, ambient 25℃); | Language | Simplified Chinese, English |
| ±2℃ or 2% (whichever is larger, 10℃≤target temp<20℃,
|
|||
| Focus Mode | Fixed Focus | Auto Shutdown | Off, 5, 10, 20, 30, 45, 60, 90min |
| Lens Focal Length | 3.2mm | WIFI | √ |
| Field of View | 56°*42° | On-site Calibration | √ |
| Spatial Resolution | 3.75mrad | PC Analysis Software | √ |
| Temp Resolution | 0.1℃ | Mobile App | WIFI connection (real-time projection, photo download) |
| Recommended Temp Distance | 0.25m | Battery Type | Li-ion 3.7V/5000mAh Rechargeable Lithium Polymer Battery |
| Temp Unit | ℃/℉ | Battery Life | ＞8h (default setting) |
| Temp Display | 5 measuring points, 3 rectangles, center point, max temp, min temp | Charging System | Type-C Direct Charge |
| High/Low Temp Tracking | √ | Charging Time | ≤5h |
| Emissivity | 0.01~1.00 | Charging Voltage/Current | 5V/2A |
| High-Temp Alarm | √ | Operating Temp | -10℃~50℃ |
| Display Screen | 2.8" TFT/IPS Screen | Storage Temp | -20℃~60℃ |
| Display Resolution | 320×240pix | Operating Humidity | ＜85%RH, non-condensing |
| Visible Light Resolution | 200W Pixels | Protection Rating | IP65, 2m Drop Protection |
