Product Details
Brand Name: CDI
Certification: UL，CMC，ETL，RoHS，GS，CE，3C
Model Number: CDI-210W
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union
Detector Type: |
Uncooled Infrared Detector |
Core Resolution: |
Infrared 256×192, Screen 640×400 (0.23-inch OLED) |
Lens Configuration: |
10mm Fixed Focus, FOV 17.5°H×13.2°V |
Key Functions: |
1x-8x Digital Zoom + Hot Spot Tracking + Laser Pointer |
Storage: |
Built-in 16GB, Supports JPG/MP4 Formats |
Battery Life: |
4000mAh Battery, Working Time ＞8h |
Environmental Adaptability: |
IP67 Protection + 2m Drop Resistance, -10℃~50℃ Operating Temperature |
Connectivity: |
Compatible With IOS/Android APP, Supports WiFi Image Transmission & Live Streaming |
Detector Type: |
Uncooled Infrared Detector |
Core Resolution: |
Infrared 256×192, Screen 640×400 (0.23-inch OLED) |
Lens Configuration: |
10mm Fixed Focus, FOV 17.5°H×13.2°V |
Key Functions: |
1x-8x Digital Zoom + Hot Spot Tracking + Laser Pointer |
Storage: |
Built-in 16GB, Supports JPG/MP4 Formats |
Battery Life: |
4000mAh Battery, Working Time ＞8h |
Environmental Adaptability: |
IP67 Protection + 2m Drop Resistance, -10℃~50℃ Operating Temperature |
Connectivity: |
Compatible With IOS/Android APP, Supports WiFi Image Transmission & Live Streaming |

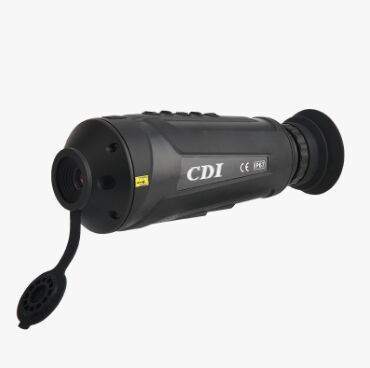

CDI-210W Portable Infrared Thermal Imaging Telescope
1. Product Overview
The CDI-210W is a lightweight and portable outdoor observation product that integrates infrared thermal imaging and long-distance detection. It combines the features of being lightweight, portable, easy to operate, and durable. It also features a clear display of 256×192 infrared pixels, along with probability measurement range + laser indication + hotspot tracking. This helps you quickly and accurately locate the target. Besides real-time observation, it can also take photos and videos for storage, meeting your needs for recording the observation process. It can also be connected to an external screen for video output and connected to a mobile phone via Wi-Fi for output of the observation. The usage methods are diverse, making observation no longer "single" and meeting the requirements of usage. It is a great "tool" for outdoor observation, camping, search, security, sea travel, etc.
2. Product Features
(1) 0.23-inch OLED Screen (640×400)
(2) Infrared Resolution: 256×192
(3) Lens Focal Length: 10mm
(4) Frame Rate: 50Hz
(5) NETD: <35mk
(6) Photo & Video Recording
(7) Electronic Zoom: 1X, 2X, 4X, 8X
(8) Adjustable Frame Rate + Laser Pointer + Hot Spot Tracking
(9) Support External Screen Output and Real-time Video Transmission via Mobile Phone APP
(10) IP67 Protection Rating, 2-Meter Drop Resistance
3. Main Technical Data
| Item | Details | Item | Details |
| Model | CDI-210W | Model | CDI-210W |
| Detector Type | Uncooled Infrared Detector | Adjustable Frame Rate | √ |
| Infrared Resolution | 256 x 192 | Storage | Internal Storage 16GB |
| Infrared Response Band | 8~14μm | Data Interface | Type-C USB |
| Pixel Size | 12μm | Photo/Video Recording | √ |
| Frame Rate | 50Hz | Screen Brightness Adjustment | √ |
| Thermal Sensitivity/NETD | <35mk | Language | Simplified Chinese, English |
| Focus Mode | Fixed Focus | Auto Power Off | Off, 5min, 15min, 50min |
| Lens Size | 11.2mm | WiFi Photo Download | √ |
| Thermal Imaging Lens Focal Length | 10mm | WiFi Video Live Stream | √ |
| Optical Axis | F1.0 | Video Output | √ |
| Field of View | 17.5°H x 13.2°V | Mobile App | IOS, Android |
| Spatial Resolution/IFOV | 1.2mrad | Battery Type | 3.65V/4000mAh 21700 Rechargeable Battery |
| Eyepiece Exit Pupil Distance | 20mm | Battery Working Time | >8h |
| Eyepiece Diopter | -4D~+5D | Charging System | Type-C Charging |
| Display Screen | 0.23-inch OLED Screen | Charging Time | <4h |
| Display Resolution | 640 x 400 | Static Current | <200μA (Battery Port After Shutdown) |
| Color Palette | Iron Red, Rainbow, Red Hot, Black Hot, White Hot | Operating Current | <500mA (Default Working State) |
| Image Mode | Thermal Imaging, PIP | Charging Voltage/Current | 5V/2A |
| Digital Zoom | 1x, 2x, 4x, 8x | Operating Temperature | -10℃~50℃ |
| Image Format/Video Format | JPG/MP4 | Storage Temperature | -20℃~60℃ |
| Hot Spot | √ | Operating Humidity | 10%~95%RH, Non-condensing |
| Hot Spot Tracking | √ | Protection Rating/Drop Protection | IP67/2m |
| Brightness Adjustment | √ | Tripod Mount | UNC ½"-20 |
| Contrast Adjustment | √ | Dimensions (L×W×H) | 63.8×62×185.4mm |
| Calibration Mode | Background Calibration, Shutter Calibration, Auto Calibration | Weight | 408g |
| Buttons | Power Button, SET Button, Up Direction Key, Down Direction Key | Product Standard Accessories | Host, USB Cable, Color Box, Tools, Manual, Warranty Certificate |
| Laser Pointer | √ (Class 2 Laser, Red) |
