Product Details
Brand Name: CDI
Certification: UL，CMC，ETL，RoHS，GS，CE，3C
Model Number: CDI-165B+
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union
Features: |
4 Imaging Modes; 7 Color Palettes; High/low Temp Alerts |
Detector: |
Uncooled IR Detector |
Resolution: |
160×120 IR (320×240 Super-res); 320×240 (2.8" TFT IPS) |
Temp Measurement: |
-20℃~550℃ Range; ±2℃±2% Max Accuracy |
Lens: |
2.6mm Fixed Focus; 40°×30° FOV |
Storage & Battery: |
32GB Built-in; 5000mAh (≈8h Runtime) |
Connectivity: |
WiFi (mobile App); PC Analysis Software Compatible |
Durability: |
IP65; 2m Drop-res; -10℃~50℃ Operating Temp |
Features: |
4 Imaging Modes; 7 Color Palettes; High/low Temp Alerts |
Detector: |
Uncooled IR Detector |
Resolution: |
160×120 IR (320×240 Super-res); 320×240 (2.8" TFT IPS) |
Temp Measurement: |
-20℃~550℃ Range; ±2℃±2% Max Accuracy |
Lens: |
2.6mm Fixed Focus; 40°×30° FOV |
Storage & Battery: |
32GB Built-in; 5000mAh (≈8h Runtime) |
Connectivity: |
WiFi (mobile App); PC Analysis Software Compatible |
Durability: |
IP65; 2m Drop-res; -10℃~50℃ Operating Temp |

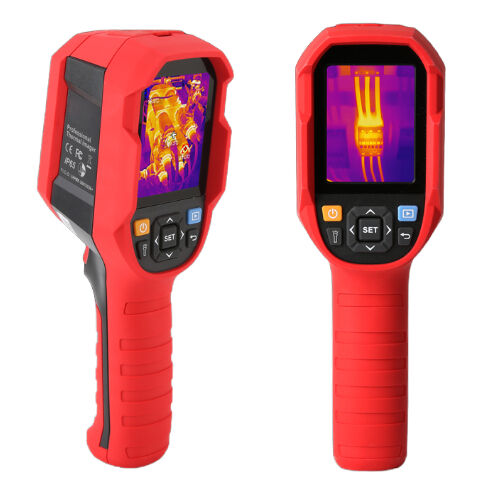

CDI-165B+ Infrared Thermal Imager
1. Product Overview
CDI-165B+ is a practical handheld infrared thermal imager that is lightweight and easy to carry, with comprehensive functions. It has a wide temperature measurement range, from -20℃ to 550℃, which can meet the needs of various application scenarios. This device features a 160×120 infrared resolution and supports super-resolution technology up to 320x240, enabling the display of high-definition infrared images. It is equipped with center-point temperature measurement, high/low temperature tracking, LED auxiliary lighting, and high/low temperature alarm functions. It also has an IP65 protection level and two-meter shock resistance feature, ensuring reliable performance under various harsh working conditions. Additionally, it is paired with professional infrared image analysis software, allowing users to conduct in-depth analysis of every detail in the later stage, and better understand and evaluate the test results.
2. Product Features
(1) Infrared Resolution: 160 x 120
(2) Frame Rate: 25Hz
(3) Temperature Measurement Range: -20℃-550℃
(4) T-Mix Fusion Version 2.0
(5) Supports 2X Super Resolution (320×240) on Device & PC
(6) Full-Screen High/Low Temperature Tracking
(7) High/Low Temperature Alerts: Visual, Buzzer, LED Flashing
(8) LED Illuminator
(9) WiFi Connection to Mobile APP
(10) PC-Side Analysis Software
(11) 4 Image Modes: Thermal Imaging, T-Mix, PIP, Visible Light
(12) 7 Color Palettes Optional
(13) Built-in 32GB Storage
(14) Adjustable Emissivity
(15) Triple Protection Design: IP65/2m Drop Resistance
(16) 1/4-inch Screw Hole at Bottom for Tripod Mounting
3. Main Technical Data
| Item | Details | Item | Details |
|---|---|---|---|
| Product Model | CDI-165B+ | Detection Type | Thermal Imaging, Visible Light, T-Mix, PIP |
| Detector Type | Uncooled Infrared Detector | Image Format | JPG |
| Infrared Resolution | 160×120 | Storage | Built-in 32GB |
| Super Resolution | 320×240 | Data Interface | Type-C USB |
| Infrared Response Band | 8~14μm | Photo | √ |
| Pixel Size | 12μm | Video Recording | √ |
| Frame Rate | 25Hz | illumination | √ |
| Thermal Sensitivity/NETD | ≤50mk@25℃ | Screen Brightness Adjustment | √ |
| Temperature Measurement Response Time | ≤800ms | Language | Simplified Chinese, English |
| Temperature Measurement Accuracy | Target -10℃-550℃, Ambient 25℃, Accuracy ±2℃±2% of Max Value | Auto Power Off | Off, 5, 10, 20, 30, 45, 60, 90min |
| Temperature Measurement Range | Auto Range: -20~150℃, 100~550℃ | WiFi | √ |
| Focus Mode | Fixed Focus | PC Analysis Software | √ |
| Thermal Imaging Lens Focal Length | 2.6mm | Mobile App | WiFi Screen Casting, Photo Download |
| Field of View | 40°×30° | Battery Type | Li-ion 3.7V 5000mAh Rechargeable Polymer Battery |
| Spatial Resolution/IFOV | 4.62mrad | Battery Working Time | ~8h (Default State at 22℃~28℃ Ambient Temp) |
| Temperature Measurement Resolution | 0.1℃ | Charging System | Type-C Charging |
| Recommended Temperature Measurement Distance | 0.25m | Charging Time | ≤5h |
| Temperature Measurement Display | 5 Measuring Points, 3 Rectangles, Center Point, Max Temp, Min Temp | Charging Voltage/Current | 5V/2A |
| High/Low Temp Tracking | √ | Operating Temperature | -10℃~50℃ |
| High/Low Temp Alarm | √ | Storage Temperature | -20℃~60℃ |
| Emissivity | 0.01~1.00 | Operating Humidity | ≤95%RH, Non-condensing |
| Display Screen | 2.8" TFT IPS Screen | Protection Rating | IP65 |
| Display Resolution | 320×240pix | Drop Protection | 2m |
| Visible Light Resolution | 200W Pixels | - | - |
| Color Palette | 7 Types | - | - |
4. Applications
Pipeline temperature measurement
Motor temperature measurement
Distribution cabinet temperature screening
