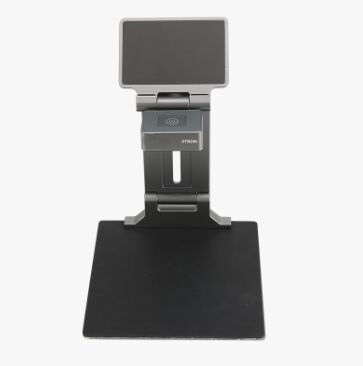

CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument
1. Product Overview
The CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument is a product that applies infrared thermal imaging technology to the field of circuit board maintenance. This product can assist engineers in quickly locating abnormal faults in circuit boards, such as short circuits and leakage, thereby improving the efficiency of research and maintenance.
2. Product Features
(1) Temperature measurement range: -15℃~600℃
(2) Infrared resolution: 260×200
(3) Equipped with a macro lens
(4) Frame rate: 25Hz
(5) Focusing method: Fixed focus
(6) Temperature curve recording + double-plate comparison/2D/3D
(7) Six adjustable color palettes (Iron Red, Rainbow, Red Hot, Black Hot, White Hot, Cold Blue)
(8) Real-time images can be photographed and recorded
(9) Central point temperature measurement, high and low temperature tracking/over-temperature alarm
(10) Supported systems: Windows (Win10 or Win11 recommended) and Android (Android 7.0 and above)
3. Main Technical Data
| Model | CDI-920A |
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
| Infrared Resolution | 260x200 |
| Thermal Sensitivity (NETD) | <50mK @25℃ |
| Frame Rate | 25Hz |
| Temperature Measurement Range | -15°C ~ +600°C (5°F ~ +1112°F) |
| Temperature Measurement Accuracy | ±2℃ or ±2%, whichever is larger |
| Temperature Measurement Distance | 100mm - 150mm, can observe at 30mm with teleconverter lens |
| Device Interface | USB Type C |
| Field of View | 56°x42° |
| Macro Lens | √ |
| Focusing Method | Fixed Focus |
| Input Voltage | DC 5V |
| Storage Environment Temperature | -20°C ~ 60°C |
| Working Environment Temperature | 0°C ~ 50°C |
| Humidity | 95% Relative Humidity |
| APP Software | Supported |
| PC Software | Supported |
| Supported Systems | Android 7.0 and above, Windows 10 and above |
| Placement on Table Board | Supported |
| Image Storage Format | JPG |
| Color Palette | 6 types (Iron Red, Rainbow, Red Hot, Black Hot, White Hot, Cold Blue) |
| Video Storage Format | MP4 |
| Cold/Hot Spot Tracking / High and Low Temperature Alarm | Supported |
| Dual-board Product Comparison 2D/3D Switching | Supported |
| Analysis Objects | Points, Lines, Regions |
| Isotherm | Supported |
