Product Details
Brand Name: CDI
Certification: UL，CMC，ETL，RoHS，GS，CE，3C
Model Number: CDI-32
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union
Infrared Resolution: |
32×32 |
Temperature Measurement Range: |
-20~1000℃ |
Thermal Sensitivity: |
0.15℃ |
Battery Type: |
3.7V Li-ion Battery (18650) |
Battery Life: |
Approximately 7 Hours |
Focus Mode: |
Fixed Focus |
Temperature Measurement Function: |
Center Point/Maximum Temperature/Minimum Temperature |
Storage Type: |
Micro SD Card |
Infrared Resolution: |
32×32 |
Temperature Measurement Range: |
-20~1000℃ |
Thermal Sensitivity: |
0.15℃ |
Battery Type: |
3.7V Li-ion Battery (18650) |
Battery Life: |
Approximately 7 Hours |
Focus Mode: |
Fixed Focus |
Temperature Measurement Function: |
Center Point/Maximum Temperature/Minimum Temperature |
Storage Type: |
Micro SD Card |

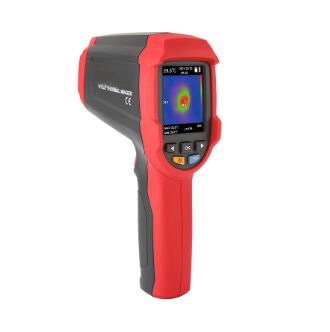

CDI-32 High-temperature Thermal Imager
1. Product Overview
CDI-32 is a temperature measurement and imaging product with a temperature measurement range of 20 to 1000℃, meeting the vast majority of temperature measurement requirements. It is also equipped with a visible light lens and an infrared thermal imaging system, allowing for a more detailed view through image fusion. It features a center point temperature measurement and automatic tracking of high and low temperatures, facilitating quick confirmation of temperature points.
2. Product Features
(1) Temperature measurement range: -20~1000℃
(2) Temperature measurement accuracy: ±2℃/±2% (whichever is larger)
(3) Thermal imaging pixels: 32×32
(4) Image modes: Thermal imaging, fusion, visible light
(5) Three color palettes optional (iron red, rainbow, and gray-white)
(6) Auto-shutdown configurable: (Off/5 minutes/10 minutes/30 minutes)
(7) Language: Chinese/English optional
(8) Display screen brightness (adjustable)
(9) LED light / Photo capture & storage
(10) Emissivity adjustable: 0.01~1.00
(11) Center point temperature measurement, automatic high/low temperature tracking
(12) Real-time image alarm symbols for high/low temperatures
(13) 3.7V rechargeable lithium battery, up to 7 hours of battery life when fully charged
3. Main Technical Data
| Basic Functions | CDI-32 |
| Screen Specification | 2.4"LCD |
| Infrared Resolution | 32×32 |
| Field of View | 30°×30° |
| Thermal Sensitivity | 0.15℃ |
| Frame Rate | 9Hz |
| Focus Mode | Fixed Focus |
| Temperature Measurement Range | -20~1000℃ |
| Measurement Accuracy | ±2% or ±2℃ (whichever is larger, at 25℃ ambient temperature) |
| Temperature Measurement Function | Center Point/Maximum Temperature/Minimum Temperature |
| Temperature Unit | Celsius/Fahrenheit |
| Temperature Resolution | 0.1℃ |
| Emissivity Setting | Adjustable 0.01~1.00 |
| Photo Capture | Yes |
| Visible Light | Yes |
| Visible Light Capture & Dual-Light Fusion | Thermal Imaging, Fusion, Visible Light |
| Color Palettes | 3 |
| High/Low Temperature Tracking | Yes |
| LED Light | Yes |
| Battery | 3.7V Li-ion Battery (18650) |
| Battery Life | Approximately 7 hours |
| Power Management | Off, 5 mins, 10 mins, 30 mins |
| Storage Type | Mirco SD Card |
| USB Interface | Micro USB |
| Transportation & Storage Environment | -20℃~60℃ ＜85%RH (non-condensing) |
| Operating Temperature | 0℃~50℃ (32°F~122°F) |
| Operating Humidity | 10%~95%RH |
