Product Details
Brand Name: CDI
Certification: UL，CMC，ETL，RoHS，GS，CE，3C
Model Number: CDI-120P
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union
Thermal Imaging Pixels: |
10800 (120*90) |
Temperature Range: |
-20~400℃ |
Basic Accuracy: |
±2℃ Or ±2% (whichever Is Larger, At 25℃ Ambient Temperature) |
Emissivity: |
0.95 (Default) (0.01~0.99 Adjustable) |
Frame Rate: |
25Hz |
Battery Specification: |
Li-ion 3.7V Lithium Polymer Battery/1350mAh (USB Rechargeable) |
Image Format: |
BMP |
Operating Temperature: |
0~50℃ (32~140°F) |
Thermal Imaging Pixels: |
10800 (120*90) |
Temperature Range: |
-20~400℃ |
Basic Accuracy: |
±2℃ Or ±2% (whichever Is Larger, At 25℃ Ambient Temperature) |
Emissivity: |
0.95 (Default) (0.01~0.99 Adjustable) |
Frame Rate: |
25Hz |
Battery Specification: |
Li-ion 3.7V Lithium Polymer Battery/1350mAh (USB Rechargeable) |
Image Format: |
BMP |
Operating Temperature: |
0~50℃ (32~140°F) |

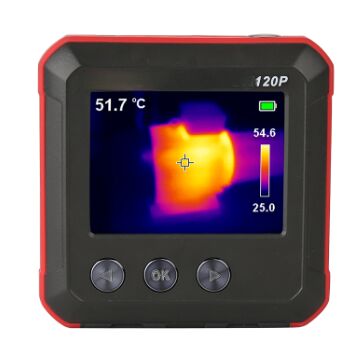

CDI-120P Infrared Thermal Imager
1. Product Overview
Miniature pocket-sized infrared thermal imager, with a lightweight structure, can be carried by users at all times. It enables users to detect hidden hotspots, energy losses, pipe blockages, HVAC malfunctions and other issues through thermal images. It has a fast response and can measure temperatures up to 400°C. It can be put into use quickly, detect hidden problems, record maintenance data, and analyze and process the data to generate reports. It is an ideal measuring tool for professionals.
2. Product Features
| CDI-80P | CDI-120P |
| Temperature measurement range: -10℃ ~ 400℃ | Temperature measurement range: -20℃ ~ 400℃ |
| Infrared pixels: 4800 (80*60) | Infrared pixels: 10800 (120*90) |
| Temperature measurement accuracy: ±2℃ or ±2% | Temperature measurement accuracy: ±2℃ or ±2% (whichever is larger, at 25℃ ambient temperature) |
| Frame rate: 9Hz | Frame rate: 25Hz |
| Center point temperature measurement & high/low temperature tracking | Center point temperature measurement & high/low temperature tracking |
| PC analysis software | PC analysis software |
| Photo capture & storage | Photo capture & storage |
| Li-ion 3.7V lithium polymer battery/1350mAh, USB charging | Li-ion 3.7V lithium polymer battery/1350mAh, USB charging |
3. Main Technical Data
| Basic Functions | CDI-80P | CDI-120P |
| Sensor | Uncooled Focal Plane | |
| Thermal Imaging Pixels | 4800 (80*60) | 10800 (120*90) |
| Temperature Range | -10℃ ~ 400℃ | -20~400℃ |
| Resolution | 0.1℃ (0.1°F) | 0.1℃ |
| Basic Accuracy | - | ±2℃ or ±2% (whichever is larger, at 25℃ ambient temperature) |
| Optimal Imaging Distance | ±2.0℃/±2% 1m (0.5-3m) | |
| Temperature Response Time | ≤500ms (95% of reading) | |
| Emissivity | 0.01 ~ 0.99 (Adjustable) | 0.95 (Default) (0.01~0.99 Adjustable) |
| Thermal Imaging Sensitivity | ≤150mK(0.15℃) | ≤60mK |
| Frame Rate | ≤9Hz | 25Hz |
| Color Palettes | Rainbow, Iron Red, Black & White | |
| Infrared Spectral Bandwidth | 8-14μm | |
| Field of View (FOV) | 50°(H)×38°(V) | |
| Spatial Resolution | 7.3mrad | |
| Temperature Display | Center Point & High/Low Temp Tracking | |
| Image Format | BMP | |
| PC Analysis Software (PC) | √ | |
| Data Communication | Micro USB | |
| Display Type | 2.4" TFT LCD | |
| Display Resolution | 320*240 | |
| Battery | Li-ion 3.7V Lithium Polymer Battery/1350mAh (USB rechargeable) | |
| Auto Shutdown | ~3.5 hours | |
| Image Storage | Micro SD Card | |
| Drop Requirement | 1m | |
| Certification | CE | |
| Storage Temperature | -20~60℃ (4~140°F) | |
| Operating Temperature | 0~50℃ (32~140°F) | |
| Operating Humidity | <85%RH (Non-Condensing) | |
