Product Details
Brand Name: CDI
Certification: UL，CMC，ETL，RoHS，GS，CE，3C
Model Number: CDI-120S
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union
Temperature Measurement: |
-20~400℃, 0.1℃ Resolution, Supports High/low Temp Tracking |
Imaging: |
120×90 Infrared Resolution, 2.4-inch Display |
Protection: |
IP54 Rating + 2m Drop Resistance |
Aux Functions: |
LED Light, Laser Pointer, High/low Temp Alarm |
Storage: |
16GB TF Card For Image Saving, With PC Analysis Software |
Battery: |
2600mAh, Runtime ≥9 Hours |
Compatibility: |
1/4 Screw Hole (tripod-ready) |
Performance: |
Response ≤500ms, Thermal Sensitivity <60mK |
Temperature Measurement: |
-20~400℃, 0.1℃ Resolution, Supports High/low Temp Tracking |
Imaging: |
120×90 Infrared Resolution, 2.4-inch Display |
Protection: |
IP54 Rating + 2m Drop Resistance |
Aux Functions: |
LED Light, Laser Pointer, High/low Temp Alarm |
Storage: |
16GB TF Card For Image Saving, With PC Analysis Software |
Battery: |
2600mAh, Runtime ≥9 Hours |
Compatibility: |
1/4 Screw Hole (tripod-ready) |
Performance: |
Response ≤500ms, Thermal Sensitivity <60mK |

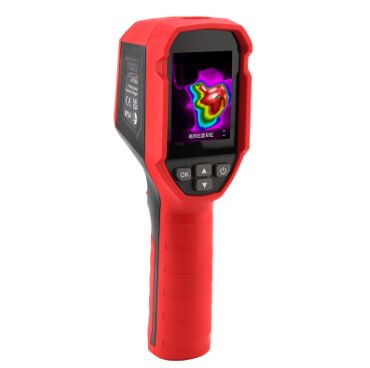

CDI-120S Economic Infrared Thermal Imaging Camera
1. Product Overview
The CDI-120S is an economical handheld infrared thermal imager that integrates temperature measurement. It is lightweight, portable and fully functional. The temperature measurement range is -20 to 400℃, with an infrared resolution of 10800. It features center-point temperature measurement and automatic tracking of high and low temperatures. It is also equipped with LED lighting / laser indication / high and low temperature alarms, IP54 / three-in-one shock-proof design. This makes it easier for you to handle different working environments. In addition, it can read the temperature by reading the device's own temperature measurement method and can also take photos and store them. Through the equipped infrared image analysis software, you can later analyze and understand every detail.
2. Product Features
(1) Infrared Resolution: 120×90
(2) Temperature measurement range: -20~400℃
(3) Temperature measurement mode: Center point, high/low temperature tracking
(4) Photo storage: 16GB TF card
(5) Adjustable emissivity
(6) Usage time: no less than 9 hours
(7) High/low temperature alarm: Image, beep, LED flash
(8) Laser pointer/LED work light
(9) Triple protection design: IP54/2-meter drop resistance
(10) PC analysis software
(11) 3.7V/2600mAh rechargeable lithium battery
(12) 1/4 screw hole at the bottom (compatible with tripods)
3. Main Technical Data
| Item | Details |
| Temperature Range | -20℃ ~ 400℃ |
| Sensor | Uncooled Infrared Focal Plane |
| Display Screen | 2.4" TFT LCD |
| Temp Measurement Response Time | ≤500ms |
| Display Resolution | 320*240 |
| Infrared Resolution | 120×90 (10800) |
| Pixel Size | 17um |
| Color Palettes | White Hot, Black Hot, Iron Red, Lava, Rainbow, High-Contrast Rainbow |
| Response Band | 8~14um |
| Field of View (FOV) | 50° (H) *38° (V) |
| Optimal Test Distance | 50cm |
| Resolution | 0.1℃ |
| Image Storage Format | BMP |
| Thermal Sensitivity | ＜60mK |
| Frame Rate | ≤25Hz |
| Temp Display Mode | Center Point Measurement, High/Low Temp Tracking |
| Temp Units | Celsius, Fahrenheit |
| Emissivity | 0.95 (default) (adjustable 0.01~0.99) |
| Auxiliary Functions | LED Light / Laser Pointer |
| PC Analysis Software | √ |
| Accuracy | -10~400℃: ±2℃ or 2% (whichever is larger) (at 25℃ ambient temp) |
| Data Communication | Type-C USB |
| Operating Temperature | 0℃~ 50℃ (32°F~ 122°F) |
| Storage Temperature | -20℃~ 60℃ (-4°F~ 140°F) |
| Operating Humidity | ＜90%RH (non-condensing) |
| IP Rating | IP54 |
| Drop Test | 2m |
| Tripod Mount | Supports 1/4" Adapter |
| High/Low Temp Alarm | LCD alarm screen, LED flash prompt, buzzer alarm |
| Auto Power Off | Selectable (5min,10min,30min, Off)；default 30min |
| Certifications | CE, UKCA, RoSH |
| Charging Time | ≤2.5 hours |
4. Applications
(1) Power and electrical equipment maintenance and repair.
(2) Daily maintenance of HVAC equipment.
(3) On-site inspection and equipment maintenance at factory manufacturing site.
