Product Details
Place of Origin: CHINA
Brand Name: CDI
Certification: UL，CMC，ETL，RoHS，GS，CE，3C
Model Number: CDI380MS
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union

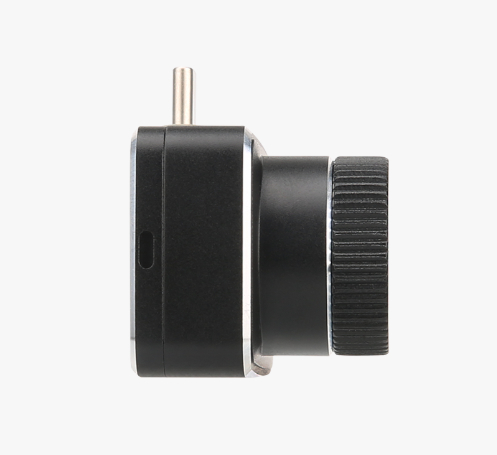

Dual Measurement Modes: |
Features Two Dedicated Modes: Industrial Temperature Measurement (-20°C To 550°C) And Body Temperature Screening (20°C To 50°C). |
High Infrared Resolution: |
Equipped With A High-resolution 400 X 300 Uncooled Infrared Detector For Clear And Detailed Imagery. |
High Thermal Sensitivity: |
Offers A Superior Thermal Sensitivity (NETD) Of <45 MK, Capable Of Detecting Minute Temperature Differences. |
Comprehensive Analysis Tools: |
Supports Center Point, Maximum, And Minimum Temperature Tracking, Along With Various Analysis Objects Like Points, Lines, Rectangles, And Circles. |
Multiple Image Modes: |
Provides Thermal, Fusion (visible Light + Infrared), And Picture-in-picture Modes For Flexible Analysis. |
Compact And Rugged Design: |
Features A Compact Form Factor (58x27x28.6mm) And 1-meter Drop Protection For Durability. |
Broad Operating Environment: |
Can Operate In A Wide Temperature Range From -10°C To 50°C And Humidity From 10% To 95% RH (non-condensing). |
Smart Mobile Integration: |
Connects Via Type-C Interface And Is Compatible With Android And IOS Apps For Photo Capture, Video Recording, And Remote Control. |
Dual Measurement Modes: |
Features Two Dedicated Modes: Industrial Temperature Measurement (-20°C To 550°C) And Body Temperature Screening (20°C To 50°C). |
High Infrared Resolution: |
Equipped With A High-resolution 400 X 300 Uncooled Infrared Detector For Clear And Detailed Imagery. |
High Thermal Sensitivity: |
Offers A Superior Thermal Sensitivity (NETD) Of <45 MK, Capable Of Detecting Minute Temperature Differences. |
Comprehensive Analysis Tools: |
Supports Center Point, Maximum, And Minimum Temperature Tracking, Along With Various Analysis Objects Like Points, Lines, Rectangles, And Circles. |
Multiple Image Modes: |
Provides Thermal, Fusion (visible Light + Infrared), And Picture-in-picture Modes For Flexible Analysis. |
Compact And Rugged Design: |
Features A Compact Form Factor (58x27x28.6mm) And 1-meter Drop Protection For Durability. |
Broad Operating Environment: |
Can Operate In A Wide Temperature Range From -10°C To 50°C And Humidity From 10% To 95% RH (non-condensing). |
Smart Mobile Integration: |
Connects Via Type-C Interface And Is Compatible With Android And IOS Apps For Photo Capture, Video Recording, And Remote Control. |
Industrial Ex 5-in-1 Multi-Gas Detector Anti-Poisoning Anti-Interference
1. Product Overview
Our company proudly launches the E-series GT-RJ2001-D point-type multi-composite combustible gas detector for industrial and commercial use. As a new-generation five-in-one gas monitoring device, it integrates cutting-edge detection technologies and innovative design concepts. The core components are equipped with high-quality and stable gas-sensitive elements, crafted with precision SMD technology, ensuring not only excellent repeatability and wide temperature/humidity adaptability but also an ultra-long service life and minimalist operation experience. It supports customers in flexibly customizing composite gas detection types according to actual needs, catering to diverse monitoring scenarios.
In terms of safety performance, the detector has passed authoritative explosion-proof certification with a protection level of IP66, capable of withstanding harsh environmental conditions. Adopting high-protection-grade materials and a sealed structural design, it demonstrates outstanding corrosion resistance and electromagnetic interference resistance, operating stably in complex working conditions such as high humidity, strong magnetic fields, and dusty environments. It firmly establishes a gas safety defense line for industrial production and commercial operations.
2. Product Features
(1) Equipped with imported high-precision sensors, ensuring accurate and stable measurement, as well as excellent resistance to poisoning and interference.
(2) Intelligent display window real-time synchronization of gas type, concentration value, unit, and equipment operation status.
(3) Modular intelligent platform design for convenient wiring/installation and worry-free maintenance.
(4) Multi-range sensor configuration supporting two-level audible and visual alarm functions.
(5) Relay linkage control for external devices such as fans and audible-visual alarms.
(6) Industrial-grade high-quality materials ensure strong sealing, corrosion resistance, explosion-proof capability, and electromagnetic interference resistance.
(7) Supports dual output modes: 4-20mA current and RS-485 signal.
3. Application
(1) Military Sector: Applied to full-process safety monitoring of flammable/toxic gas production and storage in military enterprises.
(2) Petrochemical Industry: Suitable for oil refineries, chemical plants, coking plants, as well as oil depots, gas stations, and drilling platforms.
(3) Chemical Scenarios: Used in high-risk volatile gas operation areas such as wine storage and paint spray booths.
(4) Urban Infrastructure: Covers gas distribution systems, boiler rooms, and other gas-related urban facilities.
(5) Energy & Metallurgy: Targets flammable gas leakage risk zones in metallurgical workshops and power industry gas equipment.
4. Main Technical Data
| Product name | Two-in-one gas detector, three-in-one gas detector, four-in-one gas detector, five-in-one gas detector, six-in-one gas detector |
| Model | GT-RJ2001-D |
| Resolution | 0.001, 0.01, 0.1, 1, 2, 5 (depending on the sensor and technical principle) |
| Unit of Measure | PPM,PPB,%LEL,%VOL,mg/m3,ug/m3 |
| Operating temperature | -20~+50℃ |
| Operating humidity | 10-95%RH |
| Operating pressure | 86-106Kpa |
| Accuracy | ≤±3% of full scale (FS) (there are differences for some individual gases) |
| Repeatability | ≤±1% of full scale (FS) |
