Product Details
Place of Origin: CHINA
Brand Name: CDI
Certification: UL，CMC，ETL，RoHS，GS，CE，3C
Model Number: 260Ex
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union
Model & Safety: |
CDI260Ex / Ex Ie IIC T6 Gc (Explosion-Proof) |
Infrared Core: |
256 X 192 Resolution / < 50 MK Thermal Sensitivity |
Measurement Range: |
-20°C To 550°C |
Optical Field Of View: |
56.0° X 42.0° (Wide Angle) |
Imaging Modes: |
Thermal, Visible Light, Fusion, Picture-in-Picture |
Key Physical Controls: |
Trigger, SET Button, Lighting Lamp |
Power & Endurance: |
3400mAh Battery / >5 Hours Operation |
Interface & Protection: |
USB Type-C / IP65 (Dust And Water Jet Protected) |
Model & Safety: |
CDI260Ex / Ex Ie IIC T6 Gc (Explosion-Proof) |
Infrared Core: |
256 X 192 Resolution / < 50 MK Thermal Sensitivity |
Measurement Range: |
-20°C To 550°C |
Optical Field Of View: |
56.0° X 42.0° (Wide Angle) |
Imaging Modes: |
Thermal, Visible Light, Fusion, Picture-in-Picture |
Key Physical Controls: |
Trigger, SET Button, Lighting Lamp |
Power & Endurance: |
3400mAh Battery / >5 Hours Operation |
Interface & Protection: |
USB Type-C / IP65 (Dust And Water Jet Protected) |

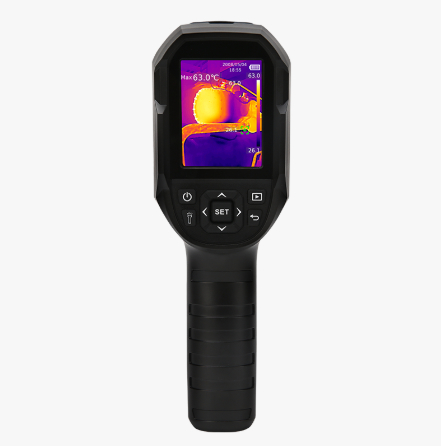

CDI260Ex Explosion-proof Infrared Thermal Imager
1. Product Overview
The CDI260Ex explosion-proof infrared thermal imager is an infrared detection device with explosion-proof function specially designed for dangerous environments such as high temperatures and flammable/explosive substances. This product has passed strict explosion-proof certification and possesses excellent explosion-proof performance. Its explosion-proof rating is ExicIICT6Gc. It also features two types of lenses - infrared and visible light. The infrared pixel is as high as 256*192, and the temperature measurement range is -20℃ to 550℃, capable of meeting more measurement requirements. It has an IP65 protection level, is shock-resistant up to 2 meters, and is sturdy and durable. Its efficient measurement function and strict explosion-proof certification ensure a solid guarantee for safety detection in high-risk industries such as chemical, petroleum, and metallurgy.
2. Product Features
(1) Infrared Resolution: 256*192
(2) Temperature Measurement Range: -20~550℃
(3) 2m Drop - Proof
(4) IP Rating: Ip65
(5) Explosion - Proof Rating: Ex ic IIC T6 Gc
3. Main Technical Data
| Model | CDI260Ex | ||
| Detector Type | Uncooled Infrared Detector | Image Mode | Thermal, Visible, Fusion, PIP (Picture-in-Picture) |
| IR Resolution | 256 x 192 | Image Format | BMP |
| Spectral Range | 8 ~ 14 μm | Storage | External Micro SD Card |
| Pixel Pitch | 12 μm | Data Interface | Type-C USB |
| Frame Rate | < 25 Hz | Snapshot | √ |
| Thermal Sensitivity (NETD) | < 50 mK | Fill Light | √ |
| Focus | Fixed Focus | Screen Brightness Adjustment | √ |
| Lens Size | 13.2mm | Language | Simplified Chinese, English |
| IR Lens Focal Length | 3.2mm | Auto Power Off | Off, 5min, 10min, 30min |
| Aperture | F1.0 | PC Super-Resolution Analysis Software | √ |
| Field of View (FOV) | 56.0°H x 42.0°V | PC Screen Mirroring | √ |
| IFOV (Spatial Resolution) | 3.8 mrad | Battery Type | 3.6V, 3400mAh |
| Temperature Measurement Range | -20°C ~ 550°C | Battery Operating Time | > 5 hours |
| Measurement Accuracy | ±2°C or ±2% (Whichever is greater, for -10°C~550°C @25°C) | Charging System | Type-C DC |
| Temperature Resolution | 0.1°C | Charging Time | < 5 hours |
| Recommended Measuring Distance | 0.25m | Charging Voltage/Current | 5V / 1A |
| Temperature Unit | °C / °F | Operating Temperature | -20°C ~ 50°C |
| Temperature Display | 3 points (Center, Max, Min) | Storage Temperature | -20°C ~ 60°C |
| Temperature Analysis | 3-point, Point of Interest (POI) | Operating Humidity | 10% ~ 95% RH, non-condensing |
| Hot/Cold Spot Tracking | √ | Explosion-Proof Rating | Ex ie IIC T6 Gc |
| Temperature Alarm | On-screen icon & Fill light alarm | Ingress Protection (IP) / Drop Test | IP65 / 2m |
| Measurement Parameters | Emissivity, Reflected Temp., Distance | Tripod Mount | 1/4 inch |
| Display | 2.8 inch LCD | Dimensions (L x W x H) | 236.5 x 75.5 x 74.5 mm |
| Display Resolution | 240 x 320 | Weight | 490 g |
| Visible Camera Resolution | 3 Megapixels | Standard Accessories | USB Cable, Micro SD Card, Charger, Certificate/Warranty Card, Manual |
| Color Palettes | White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Hi-Rainbow, Lava | ||
4.Product Appearance
| Items | Description | Items | Description |
|---|---|---|---|
| 1 | Upper Housing | 11 | POWER |
| 2 | USB Type-C Interface | 12 | Lighting Lamp button |
| 3 | SD Card Slot | 13 | LEFT |
| 4 | Lower Housing | 14 | DOWN |
| 5 | Protective Cover of Interface | 15 | UP |
| 6 | Lighting Lamp | 16 | Gallery button |
| 7 | Infrared Camera Lens | 17 | RIGHT |
| 8 | Visible-Light Camera Lens | 18 | RETURN |
| 9 | Trigger | 19 | SET |
| 10 | LCD | 20 | Bracket Screw Hole |
