Product Details
Place of Origin: CHINA
Brand Name: CDI
Certification: UL，CMC，ETL，RoHS，GS，CE，3C
Model Number: CDI384G
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union
Infrared Resolution: |
384×288 |
Temperature Measurement Range: |
-20 ~ 550 °C |
Screen Specification: |
3.5" Touch Screen (640×480) |
Storage Configuration: |
8G Internal Storage / External Expanded Storage Up To 32G |
Protection Class: |
IP54 |
Image Modes: |
Visible Light, Fusion, Picture-in-picture, Infrared |
Detector Frame Rate: |
30Hz |
Auto Power-off Options: |
Off, 5 Minutes, 10 Minutes, 15 Minutes, 20 Minutes |
Infrared Resolution: |
384×288 |
Temperature Measurement Range: |
-20 ~ 550 °C |
Screen Specification: |
3.5" Touch Screen (640×480) |
Storage Configuration: |
8G Internal Storage / External Expanded Storage Up To 32G |
Protection Class: |
IP54 |
Image Modes: |
Visible Light, Fusion, Picture-in-picture, Infrared |
Detector Frame Rate: |
30Hz |
Auto Power-off Options: |
Off, 5 Minutes, 10 Minutes, 15 Minutes, 20 Minutes |

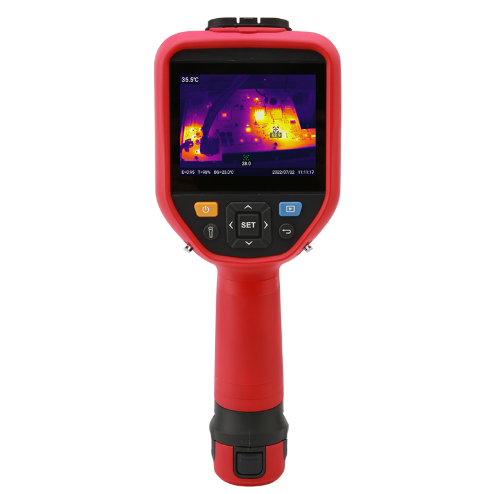

CDI384G Touchscreen Adjustable Focus Infrared Thermal Imager
1. Product Overview
The CDI384G handheld manual focus infrared thermal imager features a 3.5" touch screen that makes your work easier during imaging. Its wide temperature measurement range meets the demands of more application scenarios. Functions such as center point temperature measurement, automatic tracking of high and low temperatures, custom analysis objects, and customizable isothermal line limit temperatures facilitate the rapid detection of anomalies or areas of interest. In addition to the powerful functions on the device itself, it is also equipped with real-time image transmission to mobile phones and PCs, as well as post-image analysis and processing software.
2. Product Features
(1) Infrared resolution: 384×288
(2) Temperature measurement range: -20 ~ 550 °C.
(3) 3.5" touch screen (640×480)
(4) Image modes: visible light, fusion, picture-in-picture, infrared
(5) Adjustable focus lens
(6) Custom add temperature measurement analysis objects
(7) Over-temperature color alarm
(8) LED lighting / laser indicator
(9) Manual temperature equalization function
(10) Removable lithium battery
(11) Internal storage 8G / external expanded storage up to 32G
(12) Mobile APP/PC software: realize infrared image analysis and real-time video
(13) Video recording function
3. Main Technical Data
| Model | CDI256G |
|---|---|
| LCD Screen | 3.5" Touch Screen (640×480) |
| Adjustable Focus Lens | √ |
| Infrared Resolution | 384×288 |
| Detector Frame Rate | 30Hz |
| NETD | 40mk |
| Focal Length | 8.7mm |
| Field of View | 42°× 30° |
| Spatial Resolution | 1.91mrad |
| Temperature Measurement Range | -20°C~550 °C |
| Temperature Measurement Accuracy | ±2°C / ±2% (take the maximum value, normal temperature 25°C) |
| Take Photo | √ |
| Video Recording | √ |
| Hot Spot/Cold Spot Tracking | √ |
| Visible Light Fusion | MIF |
| PIP | √ |
| Save Visible Light Image Separately | √ |
| Point Mark | 5 movable point marks |
| Temperature Measurement Area | 5 user - adjustable rectangles, 5 user - adjustable circles |
| Color Palette | 7 types |
| Recording Function | √ |
| Infrared Laser | √ |
| Color Alarm | After exceeding the set temperature threshold, the cursor color changes to alarm |
| Image Adjustment | Level Span automatic and manual |
| Full Screen Mode | √ |
| Digital Zoom | 2×, 4× |
| LED Lighting | √ |
| Parameter Correction | Emissivity, Transmissivity, Reflection Temperature, Dew Point |
| Wifi Photo Download | Supported |
| Wifi Real - time Video | The device performs real - time video with APP via wifi |
| Mobile APP/PC Software | Supported |
| Image Storage/Playback/Deletion | Supported |
| Screen Brightness | Yes (continuous adjustment) |
| Temperature Unit | °C/°F |
| Auto Power Off | Off, 5 minutes, 10 minutes, 15 minutes, 20 minutes |
| Storage | 8GB internal storage; Micro SD 32GB external storage |
| Battery | Type C direct charge/removable lithium battery (UT - M17) |
| USB Interface | Type C |
| Drop Protection | 2m |
| Protection Class | IP54 |
