Product Details
Place of Origin: CHINA
Brand Name: CDI
Certification: UL，CMC，ETL，RoHS，GS，CE，3C
Model Number: CDI384G
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union
Model: |
CDI384H |
Sensor: |
Uncooled Vanadium Oxide |
Temperature Range: |
-30-650℃ |
Accuracy: |
±2℃/±2% (whichever Is Larger) |
Thermal Resolution: |
384×288 |
Visible Light Pixels: |
5 Million |
Image Modes: |
Visible Light, Thermal Imaging, Fusion, Picture-in-Picture |
Display Screen: |
4.3" IPS |
Model: |
CDI384H |
Sensor: |
Uncooled Vanadium Oxide |
Temperature Range: |
-30-650℃ |
Accuracy: |
±2℃/±2% (whichever Is Larger) |
Thermal Resolution: |
384×288 |
Visible Light Pixels: |
5 Million |
Image Modes: |
Visible Light, Thermal Imaging, Fusion, Picture-in-Picture |
Display Screen: |
4.3" IPS |

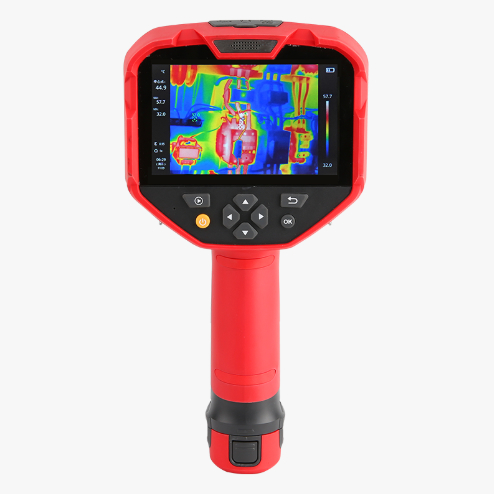

CDI384H Infrared Thermal Imager
1. Product Overview
The CDI384H model features 384×288 infrared pixels and 5 million visible light pixels, allowing you to clearly see the imaging details. Its temperature measurement range is from -30 to 650℃, covering a wide range of both high and low temperatures to meet the needs of most scenarios. It can also take photos and store real-time temperature data, and supports image browsing, editing, and analysis. The automatic/manual isotherm function enables you to view the corresponding temperature areas as needed. Additionally, it comes with a free mobile app and PC software for analyzing infrared images and exporting reports.
2. Product Features
(1) Infrared Resolution: 384×288 (Manual Focus)
(2) Frame Rate: 25Hz
(3) Visible Light Pixels: 5 Million
(4) Temperature Measurement Range: -30~650℃
(5) Temperature Measurement Accuracy: ±2℃/±2% (whichever is larger)
(6) Auto/Manual Isotherm Function
(7) Mobile APP/PC Software
(8) 7 Color Palettes Adjustable
(9) Digital Zoom: 1× 2× 4×
(10) 5-point, 5-area, 1-line Temperature Analysis
(11) Center Point Temperature Measurement, Automatic Tracking of High and Low Temperatures
(12) High and Low Temperature Alarm
(13) Image Modes: Visible Light, Fusion, Thermal Imaging, Picture-in-Picture
(14) Image Browsing and Editing
(15) Detachable Rechargeable Battery (Battery can be charged separately)
3. Main Technical Data
| Model | CDI384H | Model | CDI384H |
| Sensor | Uncooled Vanadium Oxide | Temperature Display | Center Point Temperature, High and Low Temperature Tracking |
| Mode | Auto Gain | Measurement Unit | Celsius (Default) / Fahrenheit |
| Temperature Range | -30-650℃ | High and Low Temperature Alarm | With (LCD Animation Alarm) |
| Accuracy | ±2℃/±2% (Whichever is Larger) | Image Mode | Visible Light, Thermal Imaging, Fusion, Picture-in-Picture |
| Emissivity | 0.95 (Default) 0.01-1.00 | Display Screen | 4.3" IPS |
| Pixel Size | 17μm | Image Save Format | BMP |
| Thermal Resolution | 384×288 | Image Browsing | Temperature Analysis, Color Palette, Annotation |
| Visible Light Pixels | 5 Million | USB Communication | Type-C (Real-time Image and U-Disk Storage) |
| Color Palette | Iron Red, Rainbow, Black Hot, White Hot, Red Hot, Lava, High Contrast Rainbow | WiFi | Yes |
| Infrared Spectral Bandwidth | 8-14μm | PC Screen Cast | Yes |
| Field of View (FOV) | 28°×21° | PC Analysis Software | Yes (Real-time Image, Photo Download and Analysis) |
| IFOV | 1.3mrad | Mobile APP | Yes (Photo Download and Analysis) |
| Lens Focal Length | 13mm | Language | Chinese/English |
| Focusing Method | Manual Focus | Certification | CE FCC |
| Sensitivity | <60mk@25℃ | Operating Temperature | 0℃-50℃ |
| Frame Rate | 25Hz | Storage Temperature | -10℃-60℃ |
| Digital Zoom | 1×, 2×, 4× | Operating Humidity | 10%-95%RH |
| Temperature Analysis | 5 Points, 5 Areas, Line (Up to 6 Objects on Screen) | IP Rating | IP54 |
| Isotherm | Auto/Manual | Drop Test | 2m |
