Product Details
Brand Name: CDI
Certification: UL，CMC，ETL，RoHS，GS，CE，3C
Model Number: CDI649Q
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union
Model: |
CDI640Q |
Detector Pixels: |
640×512 |
Temperature Range: |
-30℃ To 650℃ |
Thermal Sensitivity (NETD): |
≤60mk |
Image Mode: |
Infrared, Visible Light Fusion, Visible Light, Picture-in-Picture |
Display Screen: |
4.3" LCD Touch Screen |
WiFi Connection: |
√ |
Battery Type: |
5200mAh (Detachable Battery UT-M17) |
Model: |
CDI640Q |
Detector Pixels: |
640×512 |
Temperature Range: |
-30℃ To 650℃ |
Thermal Sensitivity (NETD): |
≤60mk |
Image Mode: |
Infrared, Visible Light Fusion, Visible Light, Picture-in-Picture |
Display Screen: |
4.3" LCD Touch Screen |
WiFi Connection: |
√ |
Battery Type: |
5200mAh (Detachable Battery UT-M17) |

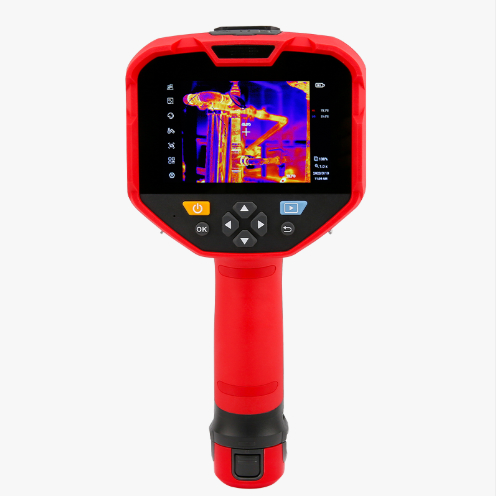

CDI649Q Infrared Thermal Imager
1. Product Overview
The CDI640Q is a handheld high-resolution and high-performance infrared thermal imager. It features a 4.3" touchscreen and a 50Hz frame rate processing, making your work "one touch away" and ensuring more convenient function realization. With a temperature measurement range of -30℃ to 650℃, it covers a wide range of both low and high temperatures, meeting the needs of most scenarios. The 640x512 infrared resolution enables you to view detailed comparisons more clearly and intuitively. In terms of product functions, it can also take real-time photos and record and store images, add analysis objects to images for real-time analysis, and comes with a free mobile app and PC software for post-image processing, meeting the needs of image analysis and processing and exporting analysis reports.
2. Product Features
(1) Infrared Resolution: 640×512
(2) Temperature Measurement Range: -30℃~650℃
(3) Frame Rate: 50Hz
(4) 4.3" LCD Touch Screen
(5) Adjustable Focus Lens
(6) Photo and Video Recording
(7) PC Analysis Software + Mobile APP
(8) Type-C Rechargeable/Detachable Battery (UT-M17)
(9) Visible Light Pixels: 5 Million
(10) High/Low Temperature Alarm Function
(11) Equipped with 7 Adjustable Color Palettes
(12) With 1.0-6.0 Electronic Zoom Function
(13) Image Analysis: Temperature Measurement Points + Digital Zoom + Temperature Measurement Areas + Isotherms
3. Main Technical Data
| Model | CDI640Q | Model | CDI640Q |
| Detector Type | Uncooled Infrared Detector | Display Screen | 4.3" LCD Touch Screen |
| Detector Pixels | 640×512 | Display Resolution | 800×480 |
| Wavelength Range | 8-14 μm | Voice Annotation/Text Annotation | √ |
| Pixel Pitch | 12 μm | QR Code Scanning | √ (Intelligent File Classification) |
| Frame Rate | 50Hz | Temperature Unit | °C / °F / K |
| Thermal Sensitivity (NETD) | ≤60mk | Language | Chinese / English |
| Focus Mode | Manual | Auto Power Off | 5min, 10min, 15min, 20min |
| Thermal Lens Focal Length | 13.0mm | Time and Date Setting | √ |
| Field of View (FOV) | 32.9°×26.6° | Screen Brightness Adjustment | √ |
| Temperature Range | -30℃ to 650℃ | Factory Reset | √ |
| Temperature Accuracy | ±2℃ or ±2% (whichever is larger) | WiFi Connection | √ |
| Temperature Resolution | 0.1℃ | USB Interface | USB Type-C |
| Emissivity Setting | √ | Mobile APP | Yes (Real-time Image, Photo Download and Analysis) |
| Image Mode | Infrared, Visible Light Fusion, Visible Light, Picture-in-Picture | PC Analysis Software | Yes (Real-time Image, Photo Download and Analysis) |
| Color Palette | 7 Types | Battery Type | 5200mAh (Detachable Battery UT-M17) |
| AI Function | AI Human Recognition + Auto Tracking Task, Generate Temperature Frame | Battery Working Time | >5h ( >2.5h with WiFi on) |
| Isotherm | √ | Charging System | Type-C Direct Charging Supported |
| Visible Light Resolution | 5MP | Charging Time | <4 Hours |
| Photo Capture | √ | Charging Method | 5V2A |
| Video Recording | √ | External Storage | 32G Standard, Hot-swappable Supported |
| Image Format | JPG | Operating Temperature | -10 to 50℃ |
| Video Format | MP4 | Storage Temperature | -20 to 60℃ |
| Digital Zoom | 1×-6× (Continuous Adjustable by Scrolling) | Relative Humidity | 10＜95%RH (Non-condensing) |
| Temperature Analysis | Point, Line, Circle, Rectangle (Up to 10 Graphics) | Protection Class | IP54 |
| Temperature Display | 3 Temperature Points (Center, Highest, Lowest) | Drop Protection | 2m |
| High/Low Temperature Alarm | Screen Alarm, Sound Alarm | Certification | CE, FCC, RoHS, UKCA |
