Product Details
Brand Name: CDI
Certification: UL，CMC，ETL，RoHS，GS，CE，3C
Model Number: CDI-384J
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 15-20 days
Payment Terms: L/C,T/T,Western Union
Infrared Resolution: |
384×288@12μm |
Temperature Measurement Range: |
Supports Automatic Range Switching, -40℃-150℃, 0℃-650℃ |
Display Screen: |
4.3-inch LCD Touchscreen |
Focus Mode: |
Auto/Touch/Semi-auto/Laser/Manual Focus |
Battery Runtime: |
≥4 Hours |
Image Mode: |
IR, VIS, MIF, PIP |
Storage Media: |
Built-in 64G, External SD Card (standard 64G, Maximum Support 256G) |
Protection Rating: |
IP54 |
Infrared Resolution: |
384×288@12μm |
Temperature Measurement Range: |
Supports Automatic Range Switching, -40℃-150℃, 0℃-650℃ |
Display Screen: |
4.3-inch LCD Touchscreen |
Focus Mode: |
Auto/Touch/Semi-auto/Laser/Manual Focus |
Battery Runtime: |
≥4 Hours |
Image Mode: |
IR, VIS, MIF, PIP |
Storage Media: |
Built-in 64G, External SD Card (standard 64G, Maximum Support 256G) |
Protection Rating: |
IP54 |

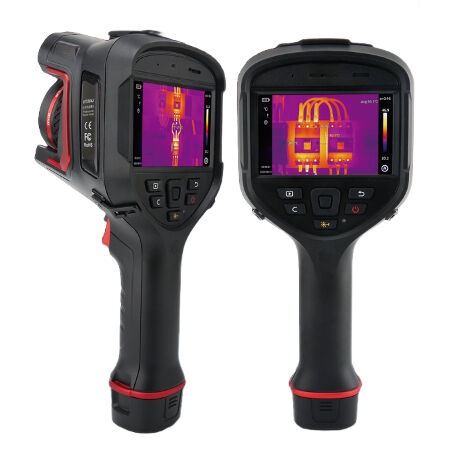

CDI-384J Infrared Thermal Imager
1. Product Overview
The CDI-384J is a handheld infrared thermal imager with outstanding performance. It features a 384×288 pixel high-resolution sensor, providing clear infrared images. With a wide temperature measurement range of -40 to 650℃, it meets the needs of various scenarios. Multiple focusing methods are available, enabling clearer details to be seen on the excellent imaging. For different usage scenarios, multiple optional lenses are provided for your selection. In terms of the temperature measurement function, it supports dual-image shooting and infrared video, which can also be analyzed for temperature on the device. The frame rate is up to 30Hz, allowing you to clearly understand the temperature of the object. In addition, professional PC analysis software and a mobile phone APP are provided free of charge, enabling your work not only to be completed on-site but also to conduct post-analysis on the stored images and generate reports.
2. Product Features
(1) Temperature measurement range: 40~650℃ (supports high-temperature expansion lens >2000℃), suitable for more scenarios
(2) Supports dual-light image capture; infrared video can perform temperature analysis with a frame rate up to 30Hz
(3) Multiple focusing modes: Auto, Touch, Semi-auto, Laser, Manual
(4) Optional wide-angle, telephoto, medium-telephoto, and high-temperature lenses for more scenarios
(5) 4.3-inch touch screen enables "one-touch access" to your function operations
(6) Adopts 384×288 resolution
(7) Panoramic stitching technology to obtain ultra-wide panoramic views
(8) Laser ranging function: 0.1~40m
(9) 8-megapixel visible light lens
(10) Super-resolution technology: Supported, upgraded to 768×576
3. Main Technical Data
| Item | Details |
| Detector Type | Uncooled Vanadium Oxide |
| Infrared Resolution | 384×288@12μm |
| Super-Resolution Tech | Supported, upgraded to 768×576 |
| IR Response Band | 7.5-14μm |
| NETD | ＜40mK |
| IR Frame Rate | 30Hz |
| Focal Length | 10.5mm (standard lens) |
| Field of View | 25°×19° (standard lens) |
| Spatial Resolution | 1.3mrad (standard lens) |
| Minimum Imaging Distance | 0.15m (standard lens) |
| Focus Mode | Auto/Touch/Semi-auto/Laser/Manual Focus |
| Digital Zoom | 1.1×-10x |
| Temperature Range | Auto-range switching: -40℃-150℃, 0℃-650℃ |
| Temperature Accuracy | ±2℃ or ±2%, whichever is larger |
| Analysis Objects | 10 temperature points, 10 temperature lines, 10 temperature areas |
| High/Low Temp Tracking | √ |
| High/Low Temp Alarm | Image alarm, voice alarm |
| Temperature Params | Emissivity, reflected temp, target distance, humidity, atmospheric transmittance, optical transmittance, dew point |
| Others | Supports equal display |
| Display Screen | 4.3-inch LCD touchscreen |
| Display Resolution | 800×480 pixels |
| Digital Sub-camera | 8MP |
| Image Mode | IR, VIS, MIF, PIP |
| Image Adjustment | Auto, semi-auto, manual |
| Palette | 15 types: White Heat, Iron Red, Arctic, Hot Iron, Rainbow 2, Rainbow 1, Lava, Medical, Darkening, Dark Heat, Blue Heat, Dark Brown, Green Heat, Ice Fire, Amber |
| Shooting | Photo, panoramic stitching, video |
| Others | Custom physical keys, full voice assistant |
| Storage Media | Built-in 64G, external SD card (standard 64G, max 256G) |
| Image Format | jpg |
| Video Format | MP4 (without temp data)/IrJpg (with temp data) |
| External Interface | Type-C, 1/4-inch tripod interface |
| WIFI | Supported |
| Battery Type | Rechargeable lithium battery |
| Battery Runtime | ≥4 hours |
| Charging Method | Type-C direct charge, PC/power bank charge, charge while using, dock charge |
| Charging Time | 2.5 hours to 90% capacity |
| Operating Temp | -20℃-50℃ |
| Storage Temp | -40℃-60℃ |
| Protection/Drop | IP54/1m |
| Supporting Software | PC, APP |
| Hardware Modules | Laser (pointer/ranging), light, microphone, speaker, electronic compass, GPS |
4. Optional Lens Specifications
| Lens Model | Lens Type | Objective Focal Length | Field of View | Minimum Imaging Distance | Wavelength Range | F/# | Lens Recognition |
| CDI-018 | Wide-Angle Lens | 6mm | 44°×34° | 0.1m | 7.5-14μm | 1.0 | Auto Recognition |
| CDI-019 | Medium Telephoto Lens | 17.5mm | 15°×11° | 1m | |||
| CDI-020 | Telephoto Lens | 37.5mm | 7°×5° | 3m | |||
| CDI-021 | High-Temp Lens (500℃~2000℃) | / | 25°×19° | 1m | / |
